When the method doesn't fit the failure, you end up with shallow causes, corrective actions that miss the mark, and the same nonconformity walking back through the door next quarter. Regulators notice this pattern too: inadequate corrective and preventive actions have led to application-withhold recommendations for drug manufacturers, according to FDA's FY2025 report.
The right RCA approach depends on problem complexity, risk, recurrence, and whether you're investigating after a failure or trying to prevent one before it happens. This article lays out a practical framework for choosing — and combining — RCA methods for manufacturing and regulated quality teams.
Key Takeaways
- Root cause analysis targets underlying conditions, not just visible symptoms
- 5 Whys, fishbone, Pareto, FMEA, fault tree, and scatter diagrams each solve a different problem
- Method choice hinges on complexity, severity, recurrence, data availability, and reactive vs. proactive need
- Strong RCA validates suspected causes with evidence before acting on them
- Regulated teams need a clear, retrievable record of the entire investigation
What Is Root Cause Analysis?
Root cause analysis is a systematic way to find the underlying cause of a failure, defect, or nonconformity instead of patching the symptom and hoping it doesn't resurface. ASQ describes it as a collective term for the approaches, tools, and techniques used to uncover why problems happen, not just where they showed up.
Getting this right requires separating a few terms teams often blur together:
- Immediate cause: the direct event or condition right before the failure (the thing you can point to)
- Contributing cause: a factor that played a role but wouldn't have caused the failure on its own
- Root cause: the underlying condition that, once fixed, actually prevents recurrence
- Correction: the action that eliminates the nonconformity you just found
- Corrective action: the action that eliminates the cause and stops it from happening again
Here's how that plays out on a shop floor. Incoming inspection flags an out-of-tolerance bore on three lots from the same supplier. The immediate cause is the dimension itself.
Quarantining the suspect stock is a correction: it protects the customer right now but doesn't explain anything. The root cause might turn out to be a missed re-qualification step after the supplier changed a tooling vendor. The corrective action has to address that specific gap, not just the bad parts sitting in quarantine.

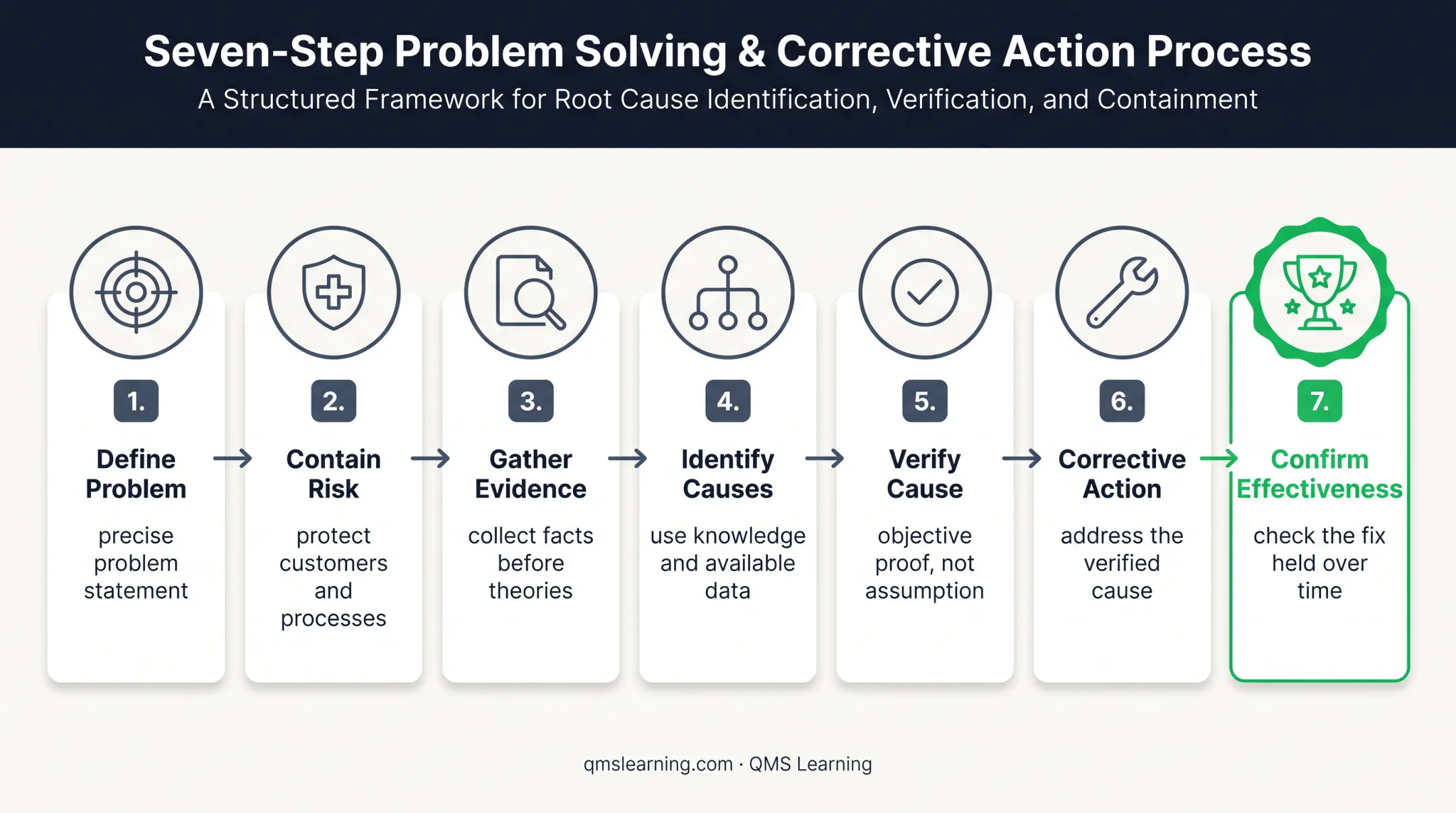

A Workflow You Can Repeat
Most solid RCA investigations follow the same basic shape:
- Define the problem precisely : vague problem statements produce vague causes
- Contain the immediate risk to protect customers and downstream processes
- Gather evidence before forming theories
- Identify possible causes using the team's knowledge and the data on hand
- Verify the root cause with objective proof, not assumption
- Implement corrective action aimed at the verified cause
- Confirm effectiveness after enough time has passed to know it held
That last step gets skipped more often than it should. A few good parts right after an adjustment don't prove a lasting fix ; they just prove the adjustment did something.
A root cause needs to stand on evidence, not blame or a restatement of the nonconformity. "Operator error" is rarely a root cause; it's usually where the investigation stopped early.
ISO's approved interpretation of clause 10.2 confirms that determining causes, and checking for similar nonconformities elsewhere, is a required part of evaluating corrective action, with records evidencing the nonconformity, the actions taken, and the results.
Common Root Cause Analysis Methods
No single tool covers every situation. Teams often layer two or three together rather than picking one and stopping.
- 5 Whys: a questioning process that drills past the first answer into deeper causes. Works well for simple, linear problems with one likely cause. It falls apart when teams force a straight-line chain onto systemic issues with multiple factors.
- Fishbone (Ishikawa) diagram: organizes brainstormed causes into categories (people, machine, method, material, measurement, environment). Excellent for generating hypotheses across a complex problem. Not proof of anything; every branch still needs validation.
- Pareto analysis: ranks recurring problems by frequency, cost, or impact so teams know which one to investigate first. It prioritizes; it doesn't prove causation.
- Scatter diagrams: plot two measurable variables to see if they move together. Useful for testing a suspected relationship after a fishbone session. Correlation isn't causation, and a narrow data range can hide a real relationship.
- FMEA: a proactive, risk-based method that identifies and prioritizes potential failures before they occur, in a design, a new process, or a control plan.
- Fault tree analysis (FTA): works backward from a defined high-consequence event, modeling combinations of failures that could lead to it. Useful for safety-critical or multi-path failure scenarios.

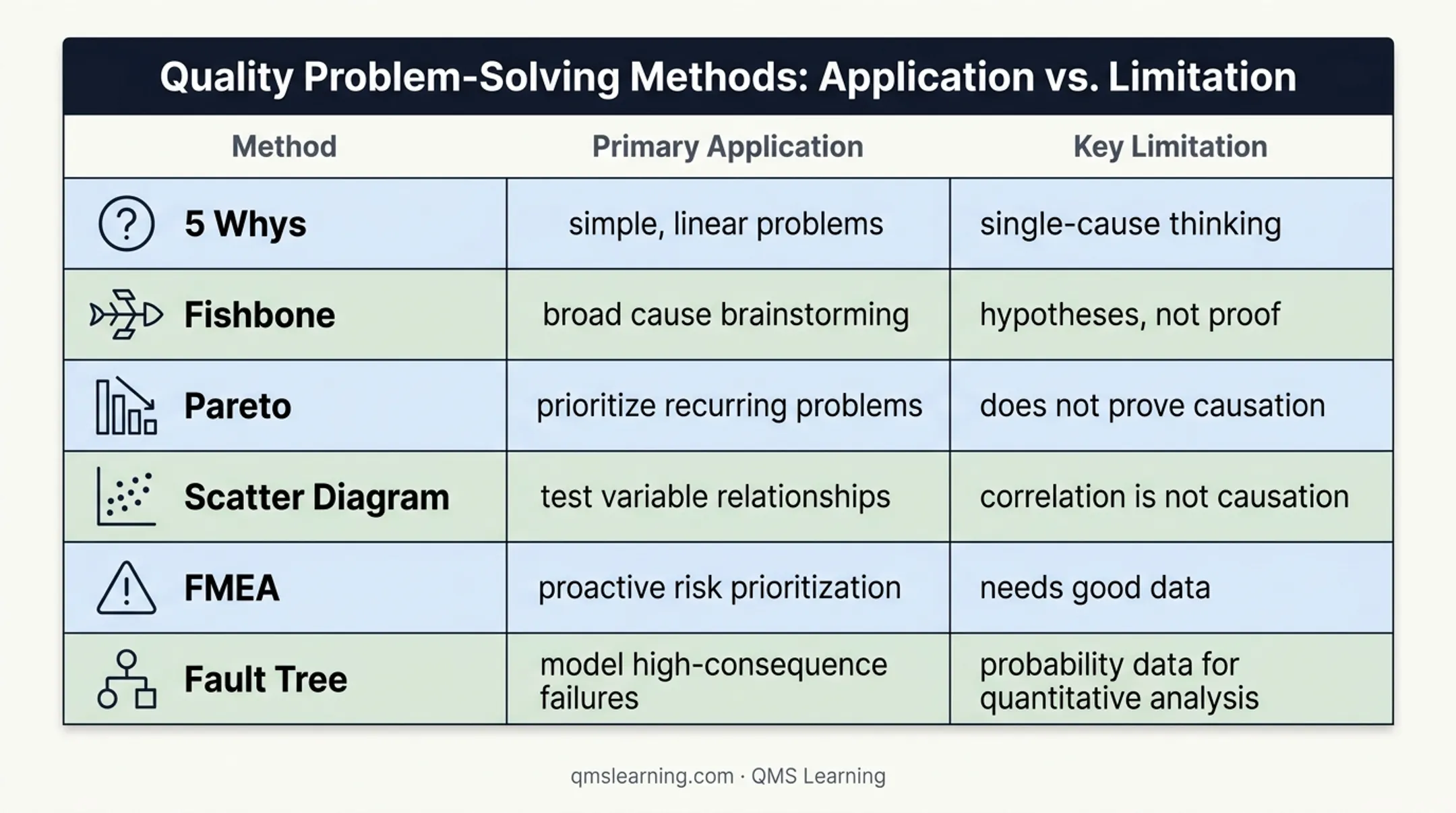

| Method | Best use | Typical data need | Key limitation |
|---|---|---|---|
| 5 Whys | Simple, linear problems | Team knowledge, basic facts | Forces single-cause thinking on complex issues |
| Fishbone | Broad cause brainstorming | Team input, process knowledge | Produces hypotheses, not proof |
| Pareto | Prioritizing which issue to tackle first | Frequency/cost/defect data | Ranks impact, doesn't prove cause |
| Scatter diagram | Testing if two variables relate | Paired numerical data | Correlation isn't causation |
| FMEA | Proactive risk prioritization | Process/design knowledge | Unreliable without good data |
| Fault tree analysis | Modeling failure paths for high-consequence events | Logical structure, probabilities | Quantitative version needs probability data |
Broader workflows like CAPA, 8D, and formal corrective-action procedures aren't competing methods. They're the container these tools live inside.
An 8D investigation, for example, typically uses fishbone and 5 Whys to generate and test causes, then layers on verification and effectiveness checks the standalone tools don't provide by themselves.
Benefits of Root Cause Analysis
Done well, RCA pays off in ways that compound over time:
- Fewer repeat nonconformities, because the fix addresses the actual condition instead of the symptom
- More targeted corrective actions that don't waste resources on the wrong process step
- Stronger CAPA outcomes and better process control over time
- Institutional knowledge that survives staff turnover, instead of living only in one person's head
There's audit value here too. Documenting the problem statement, the evidence, the causal logic, who owns each action, and the effectiveness check gives auditors exactly what they're looking for: a defensible record, not a reconstruction after the fact.
OSHA's incident investigation guidance makes a point worth repeating: treating carelessness or procedural noncompliance as the whole explanation can obscure real systemic causes. Equipment, procedures, training, and program gaps often contribute more than any one person's mistake.
Example: say a supplier shipment slips through without re-qualification after a tooling change. Blaming the receiving inspector feels faster, but it leaves the gap in place. Fixing the actual weakness (an incomplete work instruction, a missing verification step in the supplier-change process) is what keeps the same nonconformity from reappearing next quarter.
What to Consider When Choosing the Best Root Cause Analysis Method
Method selection should start with the problem, not with the tool your team already knows. A few factors do most of the work in that decision:
| Factor | Signal to watch for | Lean toward |
|---|---|---|
| Complexity | Clear symptom, one likely causal path | 5 Whys |
| Complexity | Causes could span people, equipment, methods, materials, environment | Fishbone, fault tree, or both |
| Recurrence | Several similar defects or complaints competing for attention | Pareto to prioritize, then drill in |
| Evidence available | Mostly interviews and process observations | Fishbone for initial hypotheses |
| Evidence available | Reliable trend, measurement, or failure data | Pareto or scatter diagram |
| Documentation needs | Audit-significant or multi-owner investigation | Structured CAPA/8D workflow with recorded ownership |
Risk, Severity, and Regulatory Consequence
A minor, isolated issue doesn't need the same rigor as a safety-related or customer-facing failure. When the potential consequence, customer exposure, or audit significance is high, consider fault tree analysis, FMEA, a formal CAPA, or a full 8D investigation. The goal is a causal record that holds up if someone questions it later, not just a plausible story.
Reactive Investigation vs. Proactive Prevention
5 Whys, fishbone, FTA, and scatter diagrams are reactive: they explain something that already happened. FMEA is the outlier. It is primarily proactive, used before a process or design change goes live, though teams can also apply it when reviewing an existing failure mode. Feeding historical RCA findings back into risk reviews helps catch the next failure before it ships.
If the evidence is not there yet, collect more before declaring the first plausible explanation the root cause.
Cross-functional input from quality, engineering, production, maintenance, purchasing, and suppliers cuts single-person bias and surfaces causes that live in the system, not only in the process step everyone is already watching.
Combining Methods in a Practical RCA Sequence
Most real investigations don't use one tool in isolation. A typical sequence looks like this:
- Pareto to decide which recurring issue deserves attention first
- Fishbone to organize the full range of possible causes
- 5 Whys to drill into the causal path once it's been narrowed down
- Effectiveness check to confirm the corrective action actually held
That core path covers most day-to-day nonconformities. Expand the sequence when verification data or forward-looking risk enters the picture:
| Stage | Method | Purpose |
|---|---|---|
| Prioritize | Pareto | Decide which recurring issue to tackle first |
| Generate causes | Fishbone | Organize candidate causes across categories |
| Drill down | 5 Whys | Trace the validated path to a root cause |
| Verify | Scatter diagram | Test a suspected numerical relationship |
| Model risk | FMEA / FTA | Add when multiple failure paths or future risk matter |
| Confirm | Effectiveness check | Verify the fix held over time |
Complex or high-risk problems often need FMEA or fault tree analysis layered on top of the reactive tools above. Add them when more than one plausible failure path exists, or when the same failure mode could affect a future design or process.
How QMS Learning Can Help
Choosing the right method is one thing. Applying it correctly, under time pressure, with an auditor waiting for evidence, is another. That's the gap QMS Learning was built to close.
Founder Will Trikha spent 20 years on aerospace audit floors — writing findings as an auditor and closing them as a quality manager — and built the platform around a simple observation: teams complete compliance training and still freeze when a real nonconformity lands on their desk.

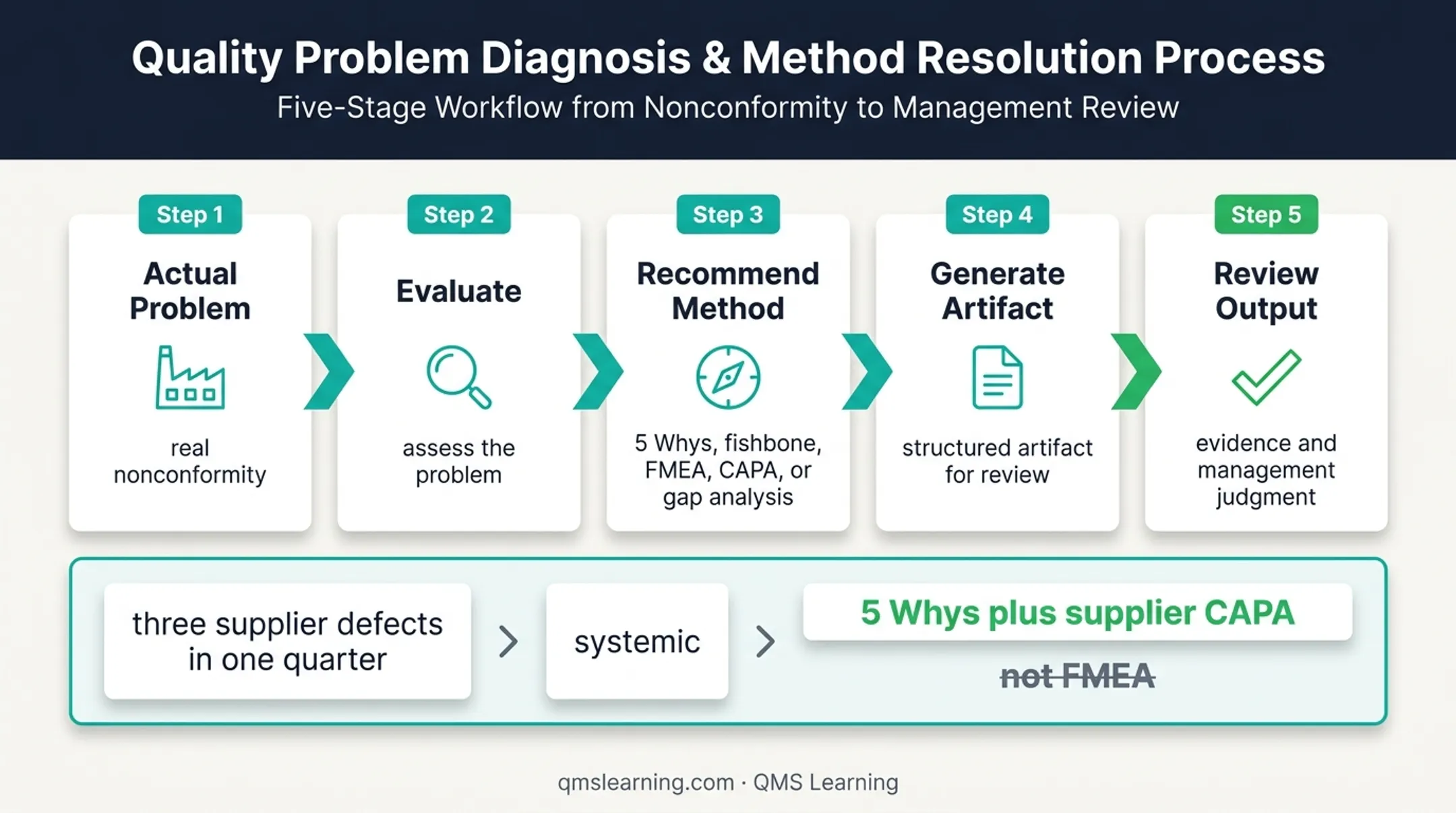

The AI Workbench and Method Router walk a team through an actual problem, help them evaluate it, and recommend an appropriate approach — 5 Whys, fishbone, FMEA, CAPA, or gap analysis — before generating a structured artifact for review. In one internal example, a recurring defect on three jobs from the same supplier in one quarter was classified as systemic rather than isolated. The tools routed the team to 5 Whys and a supplier CAPA rather than FMEA, which fits new processes, not closing existing failures.
The platform also includes:
- Role-specific, industry-scoped learning pathways
- A Manager Dashboard for visibility into team progress and capability gaps
- Controlled document history with revision tracking
- Audit-evidence export compiled in minutes, not days
None of this replaces a team's judgment, evidence review, or management approval. It's decision support — a way to build the capability to select and apply the right method consistently, then check the output against your applicable standard and internal procedures.
Conclusion
The right RCA method matches the problem's causal complexity, risk, recurrence, and the evidence you actually have. Familiarity and sophistication matter less than fit.
Use lightweight methods like 5 Whys for straightforward issues. Reach for structured, visual, or data-based methods when a problem spans multiple categories or needs prioritization. Save rigorous proactive or logic-based tools like FMEA and fault tree analysis for high-risk systems and future-facing risk.
Whatever method you choose, the sequence stays the same:
- Validate the cause with evidence
- Implement a system-level fix
- Verify the fix actually worked
- Update procedures, training, or risk controls so the lesson sticks past the next audit
Frequently Asked Questions
What are common root cause analysis methods?
The main ones are 5 Whys, fishbone diagrams, Pareto analysis, scatter diagrams, FMEA, and fault tree analysis. They cover causal drilling, category brainstorming, impact prioritization, variable relationships, proactive risk ranking, and failure-combination modeling.
What is the best root cause analysis method?
There isn't a universally best method. The right choice depends on problem complexity, risk and severity, recurrence, how much reliable data you have, and whether you're investigating after a failure or preventing one before it happens.
Is a fishbone diagram proof of a root cause?
No. It organizes possible causes into categories so a team can brainstorm systematically, but every branch is still a hypothesis. Those causes need to be verified with evidence before anyone acts on them.
Does 5 Whys always stop at five questions?
No. Five is a guideline, not a rule. Some problems resolve in three questions; others need more to reach a genuine root cause rather than another symptom.
Is FMEA used for investigating an incident that already happened?
FMEA is primarily proactive — it's meant to catch potential failures before they occur in a new design or process. It can inform an existing-failure review, but it isn't a substitute for verifying what actually caused an incident.
