This guide is written for quality, operations, manufacturing, engineering, and compliance teams, particularly those managing measurable performance, recurring defects, or audit-sensitive processes. Most people know DMAIC as an acronym. Fewer know what each phase actually requires, which tools answer which questions, or how to tell whether DMAIC is even the right tool for the problem in front of them. That's what this article covers.
Key Takeaways
- DMAIC moves from a defined problem to a measured baseline, a verified cause, a tested fix, and sustained control
- Each phase needs a specific output before the team advances, such as a charter, baseline, verified cause, or control plan
- Tools should answer the question at hand, not fill out a checklist
- Reserve DMAIC for measurable, recurring, complex problems; PDCA, A3, Kaizen, or DMADV may suit simpler or different situations better
What Is DMAIC and Why Is It Used?
DMAIC comes out of Six Sigma and Lean Six Sigma, though plenty of teams use it on its own without running a formal Six Sigma program. It's a project methodology, not a software tool or a single technique.
ASQ's DMAIC guide frames it as a structured approach for improving processes that don't meet performance standards or customer expectations, with each phase building on evidence from the last.
The goal is straightforward: reduce defects, variation, waste, or delays by finding and fixing causes that the data actually supports.
DMAIC vs. DMADV vs. PDCA
These three get confused constantly, so here's the short version:
- DMAIC improves an existing process that's underperforming
- DMADV (Define, Measure, Analyze, Design, Verify) builds a new process or product from scratch
- PDCA (Plan, Do, Check, Act) is a broader, faster, more iterative cycle, often used for smaller tests
In regulated and quality-driven environments, DMAIC earns its keep because it creates a paper trail: a traceable problem definition, objective evidence, documented decisions, and clear ownership of the result. That matters when an auditor asks how you know the root cause is actually the root cause.
DMAIC tends to fit:
- Recurring nonconformities that keep reappearing after "fixes"
- Unstable production results with no obvious single cause
- Excessive rework or scrap
- Supplier-performance issues across multiple lots or shipments
- Long cycle times with unclear bottlenecks
- Outputs that consistently miss customer or internal requirements

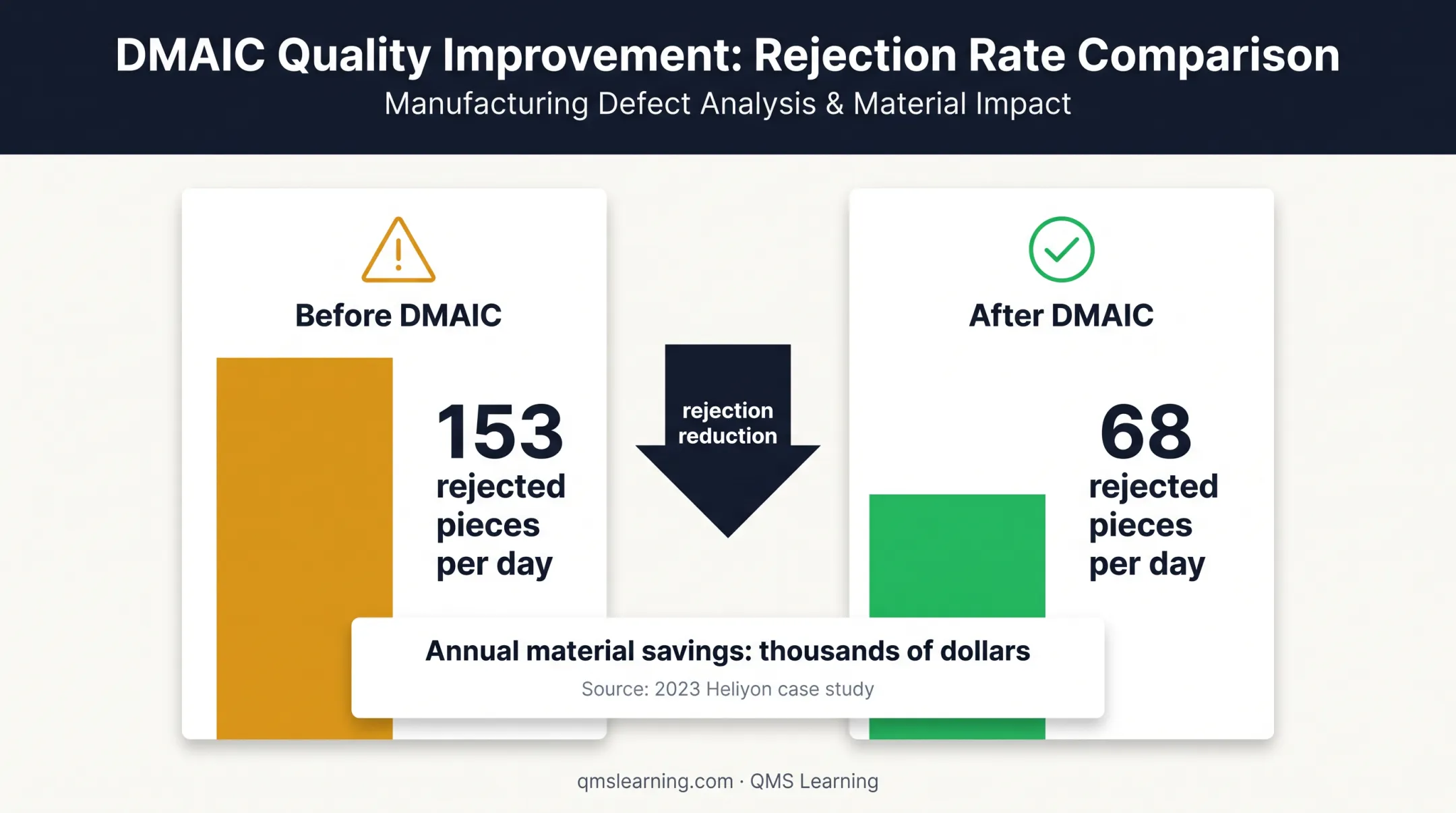

A 2023 Heliyon case study on an Indian rubber-component manufacturer shows what that discipline can deliver in practice. After applying DMAIC to a weather-strip rejection problem, the plant cut rejected pieces from 153 per day to 68 per day, with annual material savings in the thousands of dollars.
The numbers are case-specific, not a universal benchmark, but they show the kind of result a cause-and-effect process can produce when teams stick to the evidence.

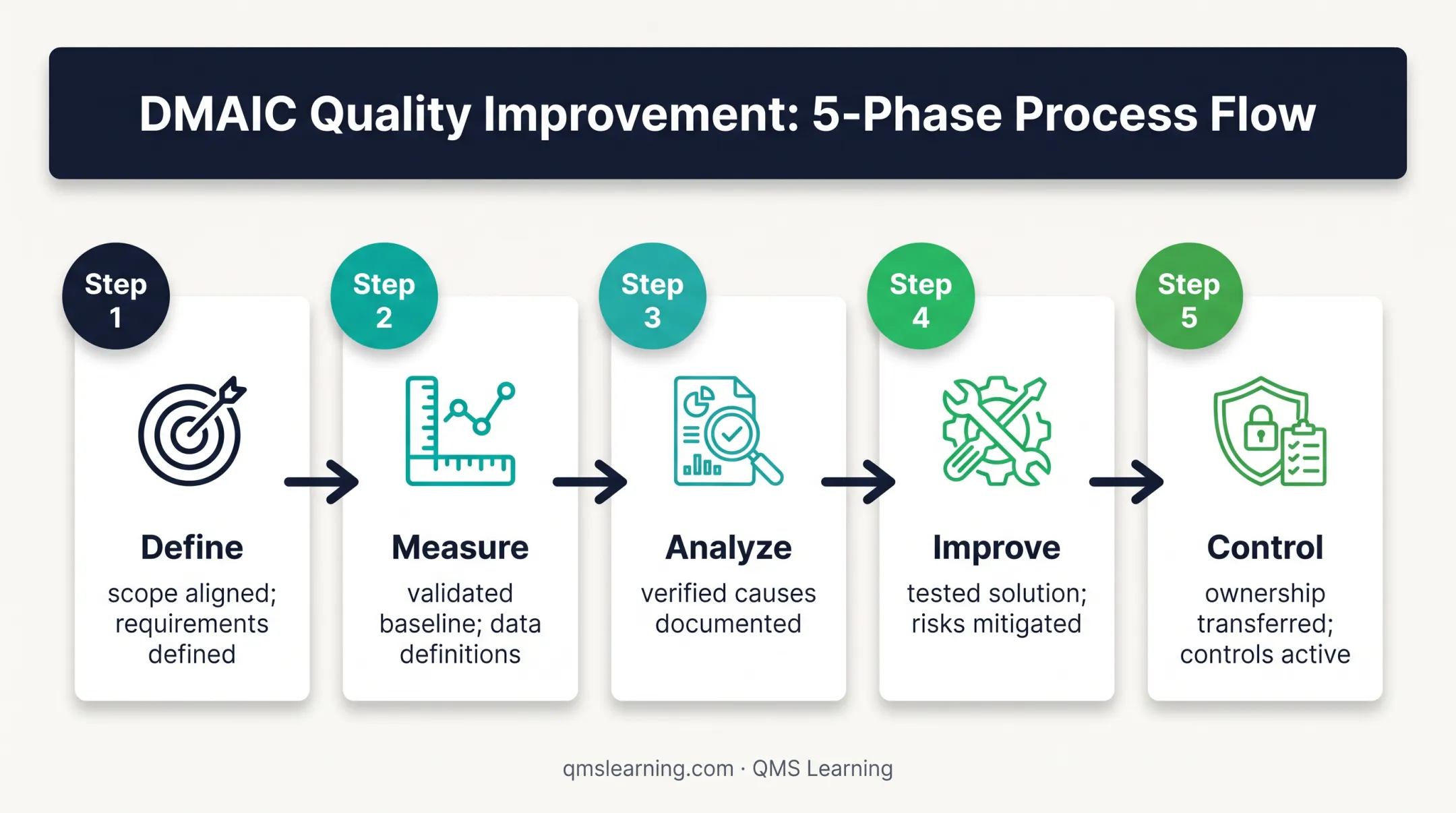

How to Run a DMAIC Project: The Five Phases and Their Tools
A DMAIC project moves through a consistent sequence: select and sponsor a meaningful project, define the problem, build a trustworthy baseline, verify causes, test improvements, and lock in controls.
Don't skip phases because a solution seems obvious early on. Most "obvious" fixes turn out to address a symptom, not the cause.
Picture a machining team chasing repeat scrap on a precision part. We'll follow that example through each phase below.
Define
Turn a broad complaint ("too much scrap") into a bounded problem statement. That means naming the process, the affected customers, the business impact, the scope, a measurable target, a timeline, and a project owner.
Useful Define-phase outputs include:
- A project charter capturing the problem, goal, and scope
- Voice of the Customer input and Critical-to-Quality requirements
- A SIPOC diagram (Suppliers, Inputs, Process, Outputs, Customers)
- A high-level process map and stakeholder analysis
- A gemba walk to observe the process as it actually runs
In our machining example, Define covers the specific defect, the affected process step, and the business impact in dollars or rejected units. Avoid vague goals like "improve quality." Say what output you're changing and by how much.
Phase gate: scope is aligned, customers and requirements are defined, measures are agreed, roles are assigned, and leadership has signed off before data collection starts.
Measure
Identify the primary output measure, any supporting process measures, and the exact operational definition of a "defect" or "failure." Decide on a sampling approach, a data source, a collection frequency, and a baseline period.
Before trusting the data, check the measurement system itself:
- Is it accurate and repeatable?
- Do different people or instruments produce reproducible results?
- Is the dataset complete, with no missing records?
- Are terms defined consistently across shifts or sites?
In the machining example, the team establishes a baseline using one consistent defect definition and a measurement system everyone trusts, not three different interpretations of "defect" floating around the floor.
Tools that help here include data-collection plans, check sheets, run charts, capability analysis, and measurement-system analysis.
Phase deliverable: a validated baseline, documented data definitions, a view of variation over time, and a clear statement of the gap between current and target performance. Don't move to Analyze on a baseline built from inconsistent definitions or an unverified measurement process. Garbage in, garbage root cause.
Analyze
Analyze tests why the problem happens. It does not confirm whatever explanation the team walked in with.
Separate plausible causes from verified ones. Useful tools, matched to purpose:
- Pareto charts and stratification to prioritize where the biggest impact sits
- Fishbone diagrams and 5 Whys to generate hypotheses, not prove them
- Process analysis to pinpoint where failures actually occur
- Statistical tests or relationship analysis to evaluate whether a suspected cause holds up
Look for differences by machine, shift, supplier, product family, operator, material lot, or transaction type. In the machining example, the team compares actual data across operators rather than assuming the newest hire is the problem, because assumptions aren't evidence.
A suspected cause only counts once it's validated through data, direct observation, or a controlled comparison. A fishbone diagram full of ideas is a starting point, not proof.
Phase gate: verified causes are documented, the mechanism linking each cause to the problem is explained, and the team knows which causes Improve can realistically influence.
Improve
Generate countermeasures that address the verified causes and meet customer, safety, quality, cost, and compliance requirements. This isn't the phase to reach for the first idea that sounds good.
Common Improve-phase activities:
- Brainstorm solutions, then score them with impact-effort analysis
- Run an FMEA or risk review on the leading options
- Build in mistake-proofing and standard work where possible
- Use design of experiments if multiple factors interact
- Pilot the change on an approved, limited scale before full rollout
Piloting matters because it surfaces effectiveness, unintended consequences, training gaps, and operational feasibility before you commit the whole process to it.
In the machining example, the pilot tests the proposed change on an approved scale and checks for side effects. It then compares results to the Measure-phase baseline using the exact same defect definition and data method.
Phase gate: the selected solution shows meaningful improvement, risks are documented with mitigations, required approvals are in hand, and there's an implementation plan.
Control
Control stops the process from drifting back to where it started. That takes standard work, clear ownership, training, visual controls, preventive maintenance, and escalation rules for when something slips.
Control-phase outputs typically include:
- A control plan and control charts or other monitoring method
- Process audits and a documented response plan
- Updated procedures and training records
- Change records and formal handoff documentation
The process owner needs to know exactly what to monitor, how often, what counts as an out-of-control signal, and what happens next. In the machining example, the control plan tells the next shift what to measure and what action to take when a limit or agreed trigger is hit.
For quality and regulated teams, evidence retention matters as much as the fix itself: approved changes, objective results, training evidence, approvals, and revision history all need a controlled home.
Final phase gate: ownership is transferred, controls are active, documents are current, response actions are defined, and the project's results get a formal review.
From Project Selection to Sustained Control
Not every problem deserves a full DMAIC project. Pick one that's meaningful but manageable: measurable, aligned with organizational priorities, backed by available data, and within your team's authority to actually change.
A working DMAIC team typically includes:
| Role | Responsibility |
|---|---|
| Sponsor | Approves the charter, removes roadblocks |
| Project leader | Runs the project, presents at phase reviews |
| Process owner | Takes over the improved process long-term |
| Subject-matter experts | Provide technical depth |
| Data support | Pulls and validates data |
| Affected operators | Bring floor-level reality checks |
| Quality/compliance rep | Confirms records meet requirements |
A practical running sequence looks like this:
- Approve the charter and kick off with the full team
- Hold a phase-gate review at the end of each DMAIC phase
- Keep a running action and decision log
- Involve the people who actually do the work, not just supervisors
- Document assumptions as you go, not after the fact
- Escalate scope or resource issues early, before they stall the project
For a quick reference, each phase should leave behind one clear piece of evidence:
- Define: charter and process definition
- Measure: data plan and baseline
- Analyze: verified causes
- Improve: tested countermeasures
- Control: control plan with handoff
DMAIC applies across manufacturing, aerospace, defense, aviation, medical device, EHS, and general quality processes. The acceptance criteria, approvals, and change-control requirements still need to follow your organization's own standards and procedures.
This is also where consistency across a team tends to break down. Teams know the five phases exist but default to whichever tool feels familiar, regardless of what the phase actually calls for.
QMS Learning's practitioner-built AI Workbench and Method Router were built around that gap. They help teams pick the right method for the problem at hand and keep the resulting documentation audit-ready. The Manager Dashboard and evidence-management features can organize learner progress and project records alongside that work.
None of this replaces expert judgment or the approvals your organization requires. It keeps method selection and recordkeeping consistent across the team.
Common DMAIC Mistakes and When It Is Not the Right Method
Even well-intentioned DMAIC projects go sideways in predictable ways:
- Starting with a solution and retrofitting the data to justify it
- Picking an unmeasurable problem, so there's no real baseline to compare against
- Treating correlation as causation without testing whether the relationship holds
- Using unreliable data collected under inconsistent definitions
- Letting scope creep turn a focused project into an open-ended investigation
- Treating a fishbone diagram as proof instead of a starting list of hypotheses
- Closing the project without a process owner, so controls quietly lapse
On the correlation point, NIST's design handbook is clear: correlation does not establish causality. Controlled experiments are the way to test a suspected relationship properly.

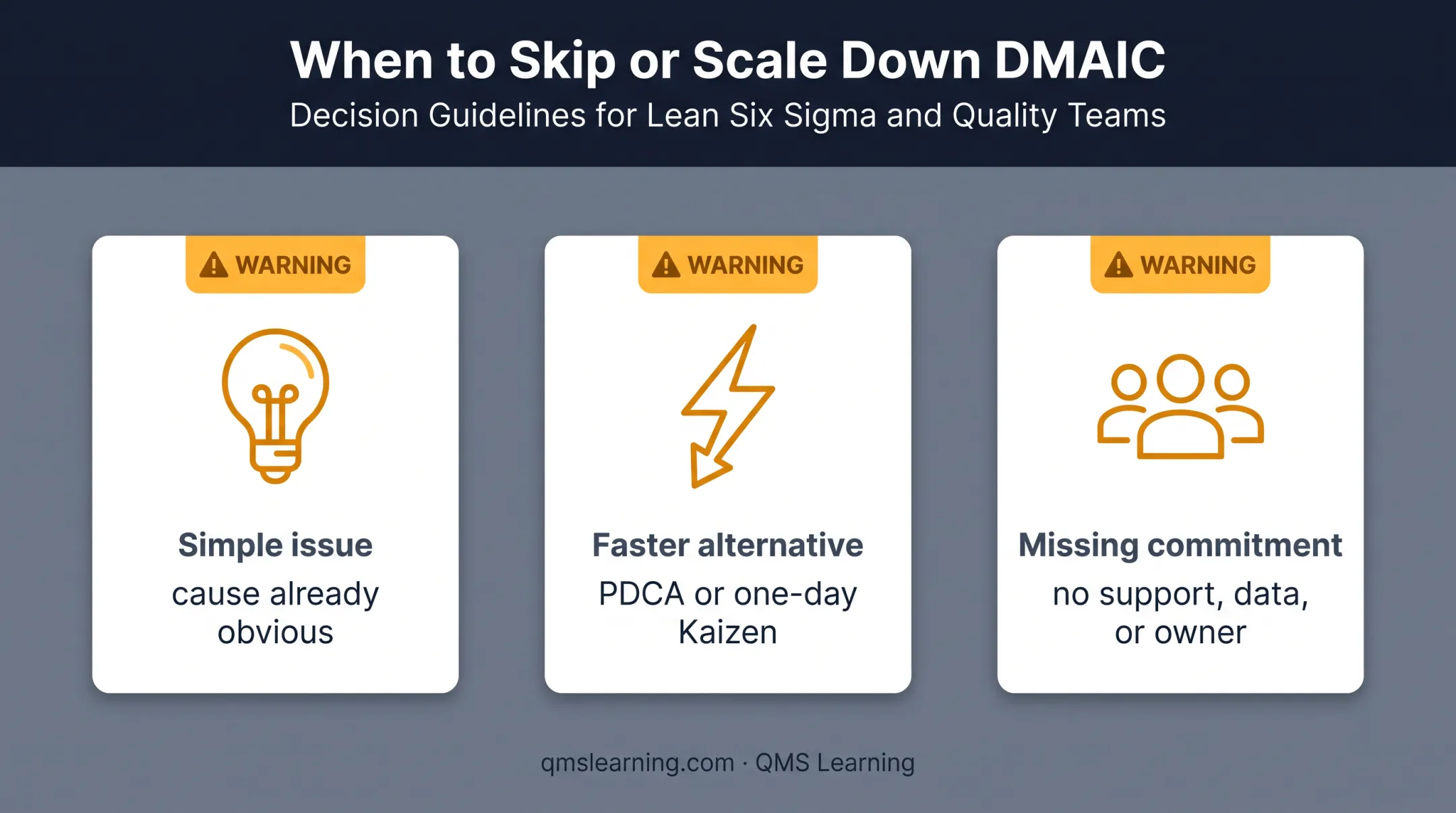

DMAIC also isn't always the right call. Skip it, or scale it down, when:
- The issue is simple, isolated, and the cause is already obvious
- A quick PDCA cycle or a one-day Kaizen event will solve it faster
- Leadership support, data access, or process-owner commitment isn't there
A few alternatives worth knowing:
| Method | Best fit |
|---|---|
| PDCA | Rapid, iterative small-scale tests |
| A3 | Concise, one-page structured problem-solving |
| Kaizen | Focused, short-burst improvement events |
| CAPA | Formal corrective/preventive action requirements |
| DMADV | Designing a new process or product |
These aren't mutually exclusive with DMAIC. A PDCA cycle can support piloting inside the Improve phase, and a CAPA system may govern the formal response once DMAIC identifies the root cause.
Conclusion
DMAIC is a disciplined path: a clearly defined problem, a measured baseline, a verified cause, a tested improvement, and a controlled process that stays fixed. The value doesn't come from filling out every template or running every available tool. It comes from making evidence-based decisions at each gate.
Start with a problem that's measurable and appropriately scoped, and match the method to the situation before you launch a project around it.
Frequently Asked Questions
What are the 5 stages of DMAIC?
Define, Measure, Analyze, Improve, and Control. Define scopes the problem, Measure builds a baseline, Analyze finds the verified cause, Improve tests and implements a fix, and Control sustains it.
What is the difference between DMAIC and PDCA?
DMAIC is a structured, project-based, data-driven method built for complex existing-process problems with an unconfirmed root cause. PDCA is a lighter, faster, iterative cycle better suited to ongoing improvement and quick experiments.
What tools are used in DMAIC?
Define uses charters and SIPOC; Measure uses data plans and process maps; Analyze uses Pareto charts, fishbone diagrams, and 5 Whys; Improve uses FMEA and pilot testing; Control uses control plans and control charts.
How do you run a DMAIC project?
Select and charter a meaningful problem, build a trustworthy baseline, verify the root cause with data, pilot and implement a tested solution, then hand off to a control plan with clear ownership and monitoring.
When should you use DMAIC?
Use it for measurable, recurring, or complex problems in an existing process where the root cause isn't confirmed yet and the fix needs to hold over time. Simpler issues with obvious causes usually don't need the full project.
What is the difference between DMAIC and DMADV?
DMAIC improves and controls a process that already exists. DMADV, Define, Measure, Analyze, Design, Verify, builds and verifies a brand-new product, service, or process from the ground up.
