That gap between knowing the requirement text and demonstrating implementation is where CMMC assessments and DoD compliance reviews most often go wrong. This guide breaks down the current applicable NIST 800-171 baseline, what each control family demands in plain language, and how to connect every requirement to an owner, a procedure, a technical safeguard, and objective evidence.
Along the way, we'll separate three things people constantly confuse: the requirement itself, the assessment objective in NIST SP 800-171A that defines how it's checked, and the documentation that proves it's real.
Key Takeaways
- Scope your CUI environment first: systems, users, data flows, and external providers
- Give every requirement an owner, implementation statement, evidence link, and status
- Let the SSP explain how requirements work; policies and logs prove it's true
- Confirm your contract's governing revision (Rev. 2 or Rev. 3) before you build anything
- Treat evidence collection as a continuous habit, not a pre-assessment scramble
What NIST 800-171 Is, Which Version Applies, and Who Must Use It
NIST SP 800-171 defines security requirements for protecting Controlled Unclassified Information (CUI) on nonfederal systems. It doesn't apply to everyone automatically. It becomes mandatory through a contract, grant, or agreement, most commonly DFARS clause 252.204-7012 for defense contractors and their subcontractors.
Which revision applies right now? Per DoD's July 2026 memo, the Phase II CMMC transition is suspended, and DoD retains Revision 2 as the active safeguarding baseline for Level 2 self-assessments. Suspension of a rollout timeline is not suspension of the safeguarding requirement itself. Contractors still need to protect CUI.
Revision 2 vs. Revision 3, at a Glance
| Aspect | Revision 2 | Revision 3 |
|---|---|---|
| Published | February 2020 | May 2024 |
| Families | 14 | 17 (adds Planning, System and Services Acquisition, Supply Chain Risk Management) |
| Requirements | 110 | 97 consolidated entries |
| Current DoD use | Active baseline | Not yet an automatic contract transition |
A lower requirement count in Rev. 3 doesn't mean less work. NIST consolidated several related requirements into single, multi-part entries. The underlying obligations didn't shrink; they merged.
Don't confuse these documents. Each plays a distinct role:
- NIST 800-171 states what must be protected
- NIST SP 800-171A supplies the assessment objectives an evaluator checks against
- The System Security Plan (SSP) explains how your organization implements the controls
- The Security Assessment Report (SAR) records findings
- The POA&M tracks what remains open
None of these documents alone proves implementation. They work as a set.

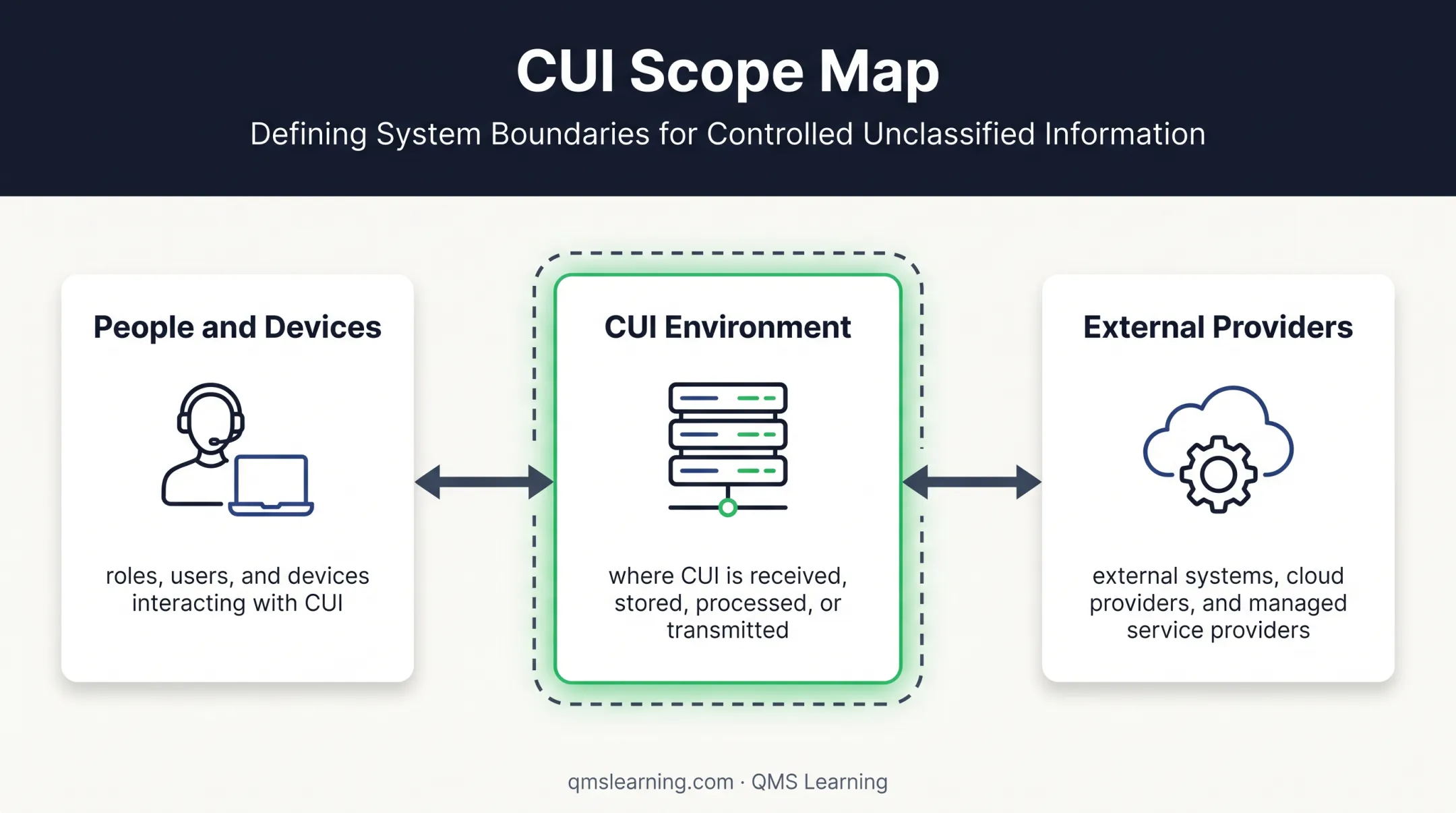

Scope Before Anything Else
Before documenting a single requirement, define:
- Where CUI is received, stored, processed, or transmitted
- Which people, roles, and devices interact with it
- Which external systems, cloud providers, or managed service providers touch it
This scoping work becomes the backbone of your SSP later, so get it right first.
NIST 800-171 Requirements by Control Family
Always verify exact requirement numbers and assessment objectives against the official NIST SP 800-171 Rev. 2 text and 800-171A. Paraphrased summaries from blog posts (including this one) shouldn't replace the source documents.
Grouped by practical implementation domain, here's what each family actually asks of your organization:
| Family Group | Covers | Plain-English Demand | Typical Evidence |
|---|---|---|---|
| Access Control, Identification & Authentication, Personnel Security | Who gets in, how they're verified, what happens when roles change | Restrict CUI access to authorized users and devices; enforce least privilege; verify identity; revoke access on departure | Account lists, access reviews, offboarding tickets, MFA logs |
| Awareness & Training, Incident Response, Security Assessment | Readiness and detection capability | Train personnel on their role; maintain and test incident handling; assess controls and track fixes | Training completion records, tabletop exercise notes, assessment reports |
| Audit & Accountability, Configuration Management, System & Information Integrity | Visibility and system hygiene | Generate and review audit logs tied to users; lock down secure baselines; catch and fix vulnerabilities or malware | Log review records, baseline configs, vulnerability scan results |
| Maintenance, Media Protection, Physical Protection, System & Communications Protection | Physical and technical boundaries | Control maintenance work; protect digital/physical media; restrict facility access; secure data in transit and at rest | Maintenance logs, media sanitization records, badge access logs, encryption configs |
| Risk Assessment | Ongoing risk visibility | Periodically identify and assess risk to CUI and supporting systems | Risk assessment reports, risk register, treatment decisions |
For every requirement, build a compact record covering:
- Family purpose and requirement number
- Plain-English demand and responsible role
- Expected implementation condition
- Likely evidence
- Matching 800-171A assessment objective
One warning worth repeating: a policy document is not evidence on its own when the requirement expects operational performance. If the requirement says "review audit logs," you need the review records, not just a policy stating logs get reviewed.
How to Document Each NIST 800-171 Requirement
Every requirement deserves its own control record with these fields:
- Requirement number and title
- System/boundary it applies to
- Implementation status (implemented, partial, not implemented, N/A)
- Accountable owner
- Implementation narrative
- Evidence links
- Assessment objective coverage
- Exceptions and remediation actions
Writing the Implementation Statement
A good narrative describes what actually happens, not what should happen. Include:
- What the activity is
- Where it occurs (which system, environment, or facility)
- Which roles or tools perform it
- How often it happens
- Which policy or procedure governs it
Skip generic language like "the organization ensures appropriate access controls." Say what's real: "IT security reviews privileged account lists in the CUI enclave monthly, documented in ticketing system tickets tagged ACCESS-REVIEW."

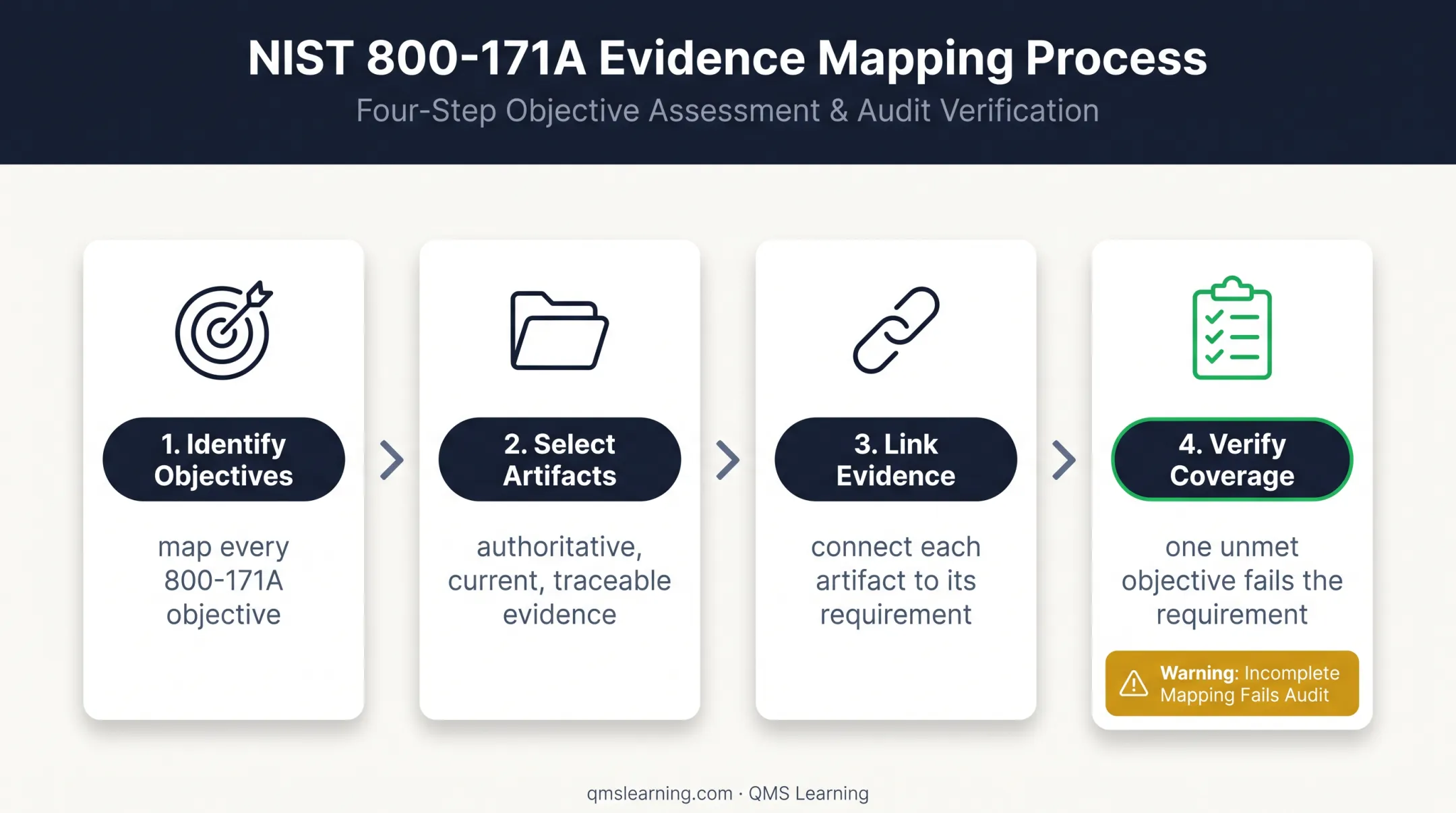

Selecting and Mapping Evidence
Choose artifacts that are authoritative, current, and traceable: approved policies, configuration exports, access reviews, training records, tickets, logs, and test results. Each one needs an owner, date, version, retention rule, and a clear link to the requirement it supports.
Don't attach an undifferentiated document dump. Per the CMMC Assessment Guide, all applicable assessment objectives under a requirement must be satisfied — one unmet objective fails the entire requirement, regardless of how much other evidence exists.
Documenting Gaps in a POA&M
For anything not fully implemented, record:
- The unmet requirement and root cause
- Planned corrective action and accountable owner
- Dependencies and milestone dates
- Resources required and validation method
- Closure evidence once remediated
Worked example: For a training requirement such as security awareness training, the implementation statement might read: "All CUI-authorized personnel complete role-specific security awareness training annually, tracked in the LMS, with refreshers triggered by role change."
Supporting evidence could include:
- Completion records by employee
- LMS export showing dates
- Sample quiz score report tied to the applicable 800-171A objective for insider threat awareness

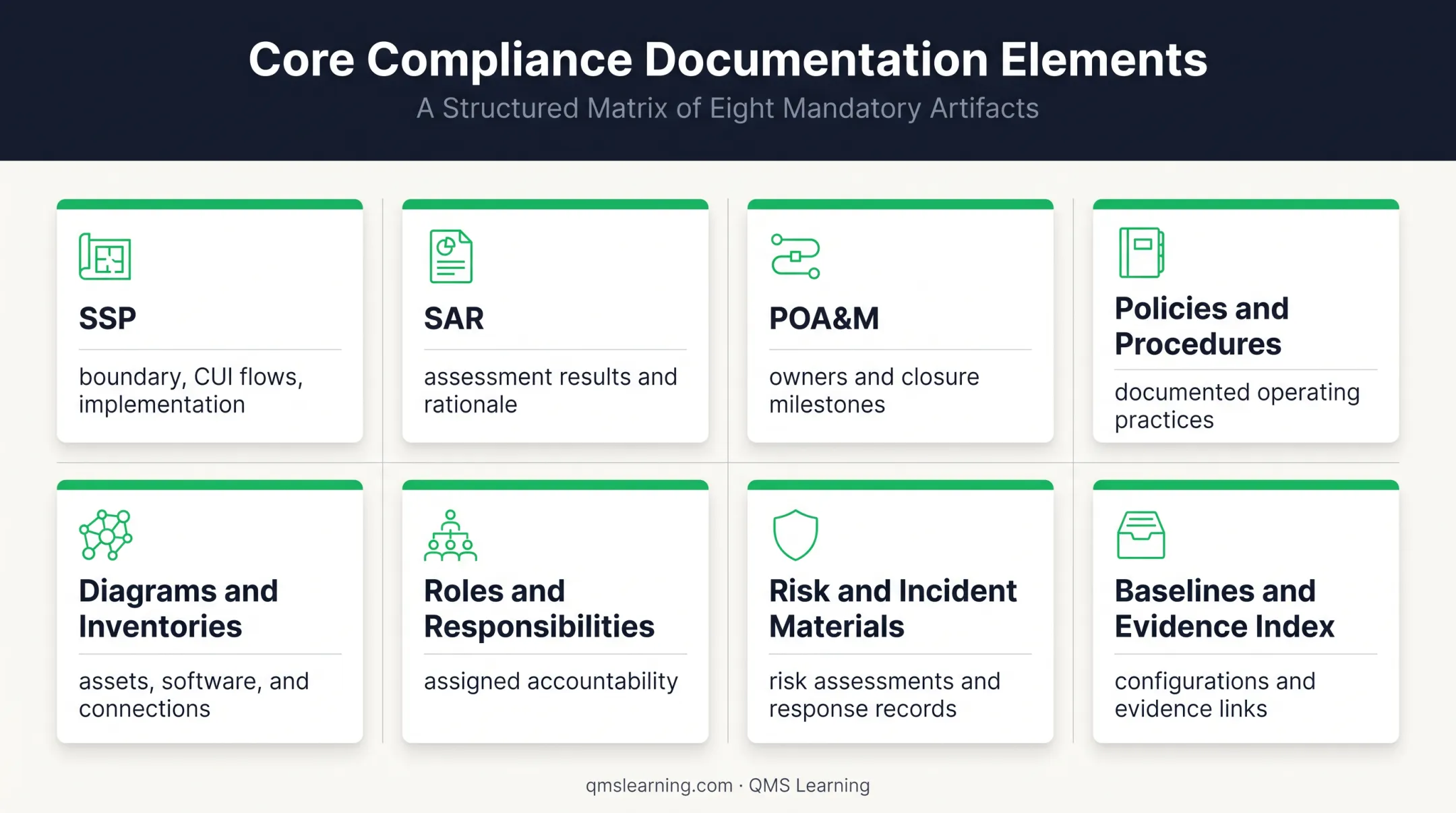

NIST 800-171 Documentation Deliverables at a Glance
Three deliverables get confused constantly, so here's the distinction:
- System Security Plan (SSP): Defines the system boundary, describes CUI flows, lists external connections and service providers, and explains how each requirement is implemented. Per Rev. 2 requirement 3.12.4, it must be documented and periodically updated. There is no single universal template.
- Security Assessment Report (SAR): Records assessment results and the rationale behind them. It's a finding, not a plan.
- POA&M: Tracks how open items get closed, with owners and milestones.
Beyond those three, expect a supporting document set:
- Policies and procedures
- Network diagrams, plus asset and software inventories
- Roles and responsibilities
- Risk assessments and incident response materials
- Configuration baselines and an evidence index
Document control matters as much as content. Each document needs:
- Approval history and version tracking
- Review frequency and change ownership
- Access restrictions and a defined retention rule
This is where a controlled system pays off instead of a shared drive full of "Final_v3_ACTUAL.docx" files.
QMS Learning's Document Management System, for example, keeps one live revision at a time, retains superseded versions without letting them pass as current, and links documents to the clauses and training they support. That traceability is what auditors expect, though the system itself does not create compliance. Practice still has to match what is written down.

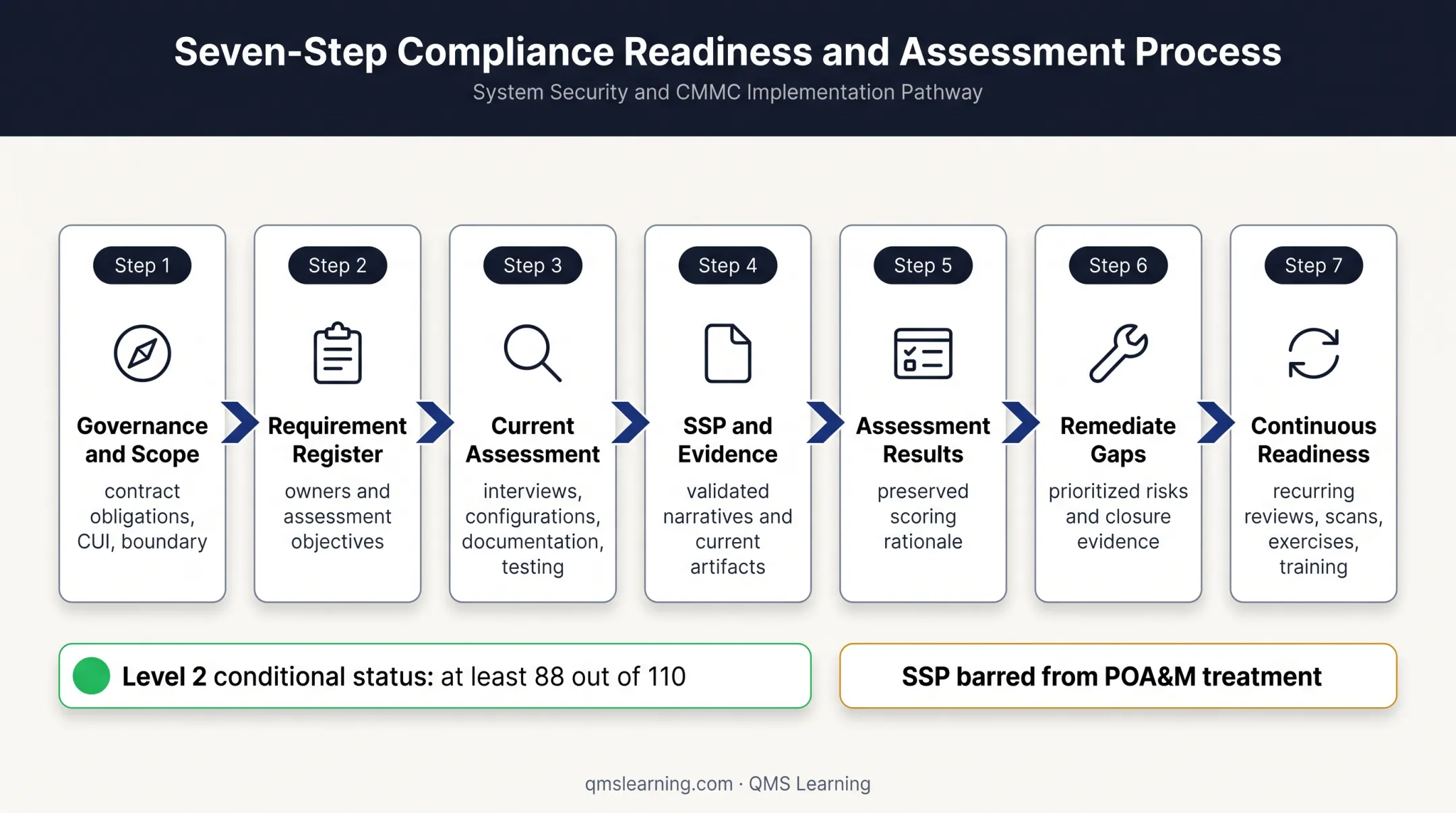

A Practical NIST 800-171 Implementation and Evidence Workflow
Building a credible NIST 800-171 posture follows a sequence. Skipping steps is usually where teams get caught.
- Establish governance and scope — Identify contract obligations, CUI types, system boundary, data flows, accountable executives, and external providers.
- Build the requirement register — Import the authoritative requirement set, assign owners and assessment objectives, and define status values.
- Assess current implementation — Interview personnel, inspect configurations, review documentation, and test whether stated procedures actually work.
- Create the SSP and evidence index in parallel — Write narratives only after validating real practices, then link each to current artifacts.
- Calculate and communicate assessment results — Follow the DoD assessment methodology and preserve scoring rationale rather than presenting unsupported claims.
- Remediate and validate gaps — Prioritize risks and contract-impacting weaknesses, then collect closure evidence.
- Operate continuous readiness — Schedule recurring access reviews, vulnerability scans, incident exercises, and training refreshers.
Step 6 matters more than it sounds. Under the CMMC final rule, a Level 2 conditional status requires a score of at least 88 out of 110, and several high-value requirements — including the SSP itself — are explicitly barred from POA&M treatment. You can't defer a missing SSP by hitting a score threshold.
Teams that try to build this register from scratch, in isolation, often rediscover the same gaps repeatedly: no named owner per family, SSP narratives copied from a template that doesn't match their actual environment, and POA&Ms with no real closure evidence. QMS Learning's CMMC & NIST 800-171 course builds that register directly. Learners work through all 14 control families and leave with a data inventory, enclave outline, SSP outline, sample score, and POA&M as course outputs, not hypothetical examples.
For teams building defense cybersecurity capability, the Defense Cybersecurity Readiness pathway (pilot cohort, Q3 2026) extends this into CMMC, NIST 800-171, ISO 27001, and SOC 2 readiness work. It is training and readiness support, not a substitute for a C3PAO assessment or certification.
Conclusion
Readiness under NIST 800-171 comes down to two things working together: safeguards that actually operate, and evidence credible enough to show an assessor they're real. Neither one covers for the other.
For every requirement, the practical standard is the same:
- Know what it demands
- Assign an owner
- Implement the activity
- Document it and preserve the evidence
- Assess whether it's effective
- Remediate what's not
Start with scope and the requirement register. Build the SSP and your evidence system from what your organization actually does, not from copied policy language that sounds right but doesn't match reality. That's what holds up when someone asks to see it.
Frequently Asked Questions
What is the difference between NIST 800-171 and NIST 800-172 standards?
NIST 800-171 establishes the baseline requirements for protecting CUI. NIST 800-172 adds enhanced requirements for organizations facing more advanced threats, typically tied to critical programs or high-value assets. Always verify which applies under your specific contract.
What are the NIST 800-171 controls?
They're security requirements organized into control families covering access, authentication, incident response, audit, configuration, physical protection, and system integrity. This article describes the Revision 2 structure currently used for CMMC Level 2.
What are the 20 control families?
That 20-family structure belongs to NIST SP 800-53, a different and broader publication. NIST SP 800-171 uses its own family structure (14 in Rev. 2, 17 in Rev. 3). Don't mix the two checklists.
What documentation is required for NIST 800-171?
At minimum: the System Security Plan, assessment records, a POA&M for open items, policies and procedures, system/data-flow descriptions, and objective evidence proving operational implementation, not just written intent.
How do you document a NIST 800-171 control?
Record the requirement, scope, owner, implementation narrative, evidence references, assessment status, exceptions, and remediation actions. Link each element to current artifacts an assessor can independently verify.
