This cycle plays out across manufacturing floors, aerospace suppliers, and regulated operations every day. Repeat nonconformities, recurring equipment failures, and findings that resurface at the next audit all trace back to one problem: root cause analysis that stopped too early.
The cost of getting this wrong is documented. In 2010, OSHA finalized a $50.6 million failure-to-abate settlement with BP after the company made safety changes but didn't fully resolve conditions cited years earlier. Unresolved causes don't stay quiet. They come back, often at a higher cost.
This guide walks through what root cause analysis actually requires — the methods, the step-by-step process, and where most investigations go wrong.
Key Takeaways
- RCA identifies the underlying conditions behind a problem, not just the visible defect or failure.
- Match the tool to the problem: 5 Whys for cause chains, fishbone for exploration, Pareto for prioritization, barrier analysis for complex events.
- A defensible RCA needs a clear problem statement, verified evidence, and cross-functional input.
- Closing the loop means checking whether the fix actually held — not just filing the paperwork.
What Is Root Cause Analysis?
Root cause analysis is a structured investigation used to identify the underlying conditions, process failures, or system weaknesses that allowed a problem to occur. Finding a cause is not enough. RCA identifies the cause that, once corrected, prevents the problem from coming back.
That distinction matters because most failures have layers:
- Symptom: the visible defect, complaint, or incident
- Immediate cause: the direct action or condition that triggered it
- Contributing factor: a condition that worsened the outcome but didn't cause it alone
- Root cause: the underlying system or process gap that allowed the immediate cause to occur
"Operator error" is almost never a root cause. It's usually a symptom of something upstream: unclear work instructions, inadequate training, poor fixture design, or a control that should have caught the error but didn't.
Core Principles of Effective RCA
Good RCA follows a few non-negotiable rules:
- Focus on how and why, not who
- Use evidence, not assumptions or hunches
- Consider multiple causes rather than settling on the first plausible one
- Involve the people who own the process, not just the people investigating it
- Continue through corrective action and effectiveness verification; stopping at "cause identified" isn't RCA, it's half of it
RCA also splits into reactive investigation (something already failed) and proactive analysis (anticipating failure before it happens, as with FMEA). Some problems call for a single tool. Others, especially complex, cross-functional ones, fit better inside a structured framework like DMAIC or an 8D/CAPA process.
Why Root Cause Analysis Is Critical in Manufacturing and Regulated Operations
Weak RCA doesn't just waste time. It compounds. A nonconformity that wasn't truly resolved resurfaces at the next audit, the next supplier shipment, or the next safety walk. Teams end up firefighting the same issue repeatedly instead of actually improving the process.
The connection between RCA quality and business risk shows up in:
- Repeat nonconformities that put contracts on hold when a Tier 1 customer's audit finds the same gap twice
- Recurring equipment failures that eat into uptime and maintenance budgets
- Safety incidents that repeat because the investigation addressed the immediate trigger, not the system weakness
- Audit findings that reappear year over year because CAPAs closed without verified effectiveness
The US Chemical Safety Board's investigation into BP's Texas City refinery is a documented case of this gap. The CSB found that targeting operator and supervisor mistakes alone missed broader organizational causes, including a reporting culture that didn't surface problems and investigations that didn't identify practical corrective actions.
A low personal-injury rate had been used as a stand-in for process-safety performance, masking the real risk.

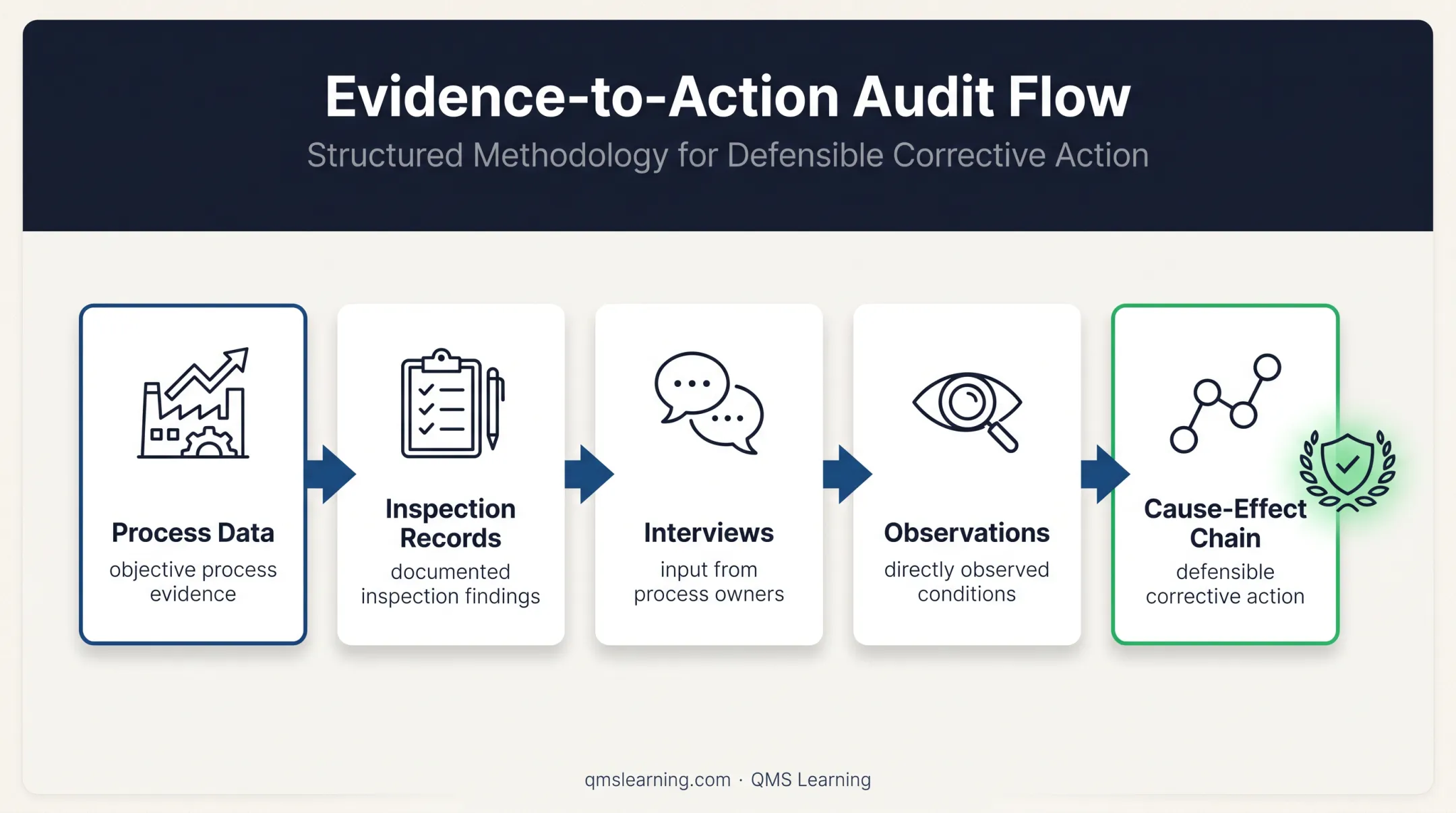

A defensible RCA connects every proposed action to objective evidence: process data, inspection records, interviews, observations, and a documented cause-and-effect chain. That evidence trail makes corrective action defensible in an audit and prevents a quality team from re-litigating the same root cause investigation twelve months later.
Root Cause Analysis Methods and Tools: What to Use and When
No single tool proves a root cause by itself. Method selection is a judgment call based on the problem's complexity, available data, and how many branches the cause might have. A good rule of thumb: use one tool to widen the search, another to narrow it, and documented evidence to confirm the conclusion.
| Method | Best for | Watch out for |
|---|---|---|
| 5 Whys | Direct, linear cause chains | Branching causes or weak evidence can lead to a wrong "final" answer |
| Fishbone (Ishikawa) | Broad brainstorming across People, Machine, Method, Material, Measurement, Environment | Generates possibilities, not proof; still needs validation |
| Pareto chart | Prioritizing which defect, complaint, or downtime category to investigate first | Frequency isn't causation |
| Change analysis | Investigating what shifted before a problem appeared | A changed condition is a lead, not a confirmed cause |
| Barrier analysis | Incidents where a control should have caught the problem but didn't | Covers both prevention and detection failures |
| FMEA | Anticipating failure modes before they happen | Needs good data; generic templates produce unreliable scores |
| Fault tree analysis | Mapping combinations of events that produce a system-level failure | Quantification depends on data quality and event dependencies |
5 Whys starts with a precise problem statement and asks "why" repeatedly until you hit a condition the organization can actually control. The American Society for Quality notes a real limitation here: when several causes interact, a linear 5 Whys chain can hide the branches entirely. That's when fishbone or change analysis should take over.
DMAIC (Define, Measure, Analyze, Improve, Control) is useful when a process is chronically underperforming and the cause isn't obvious. It frames the investigation; it does not replace the tools inside it.
How Root Cause Analysis Works – Step by Step

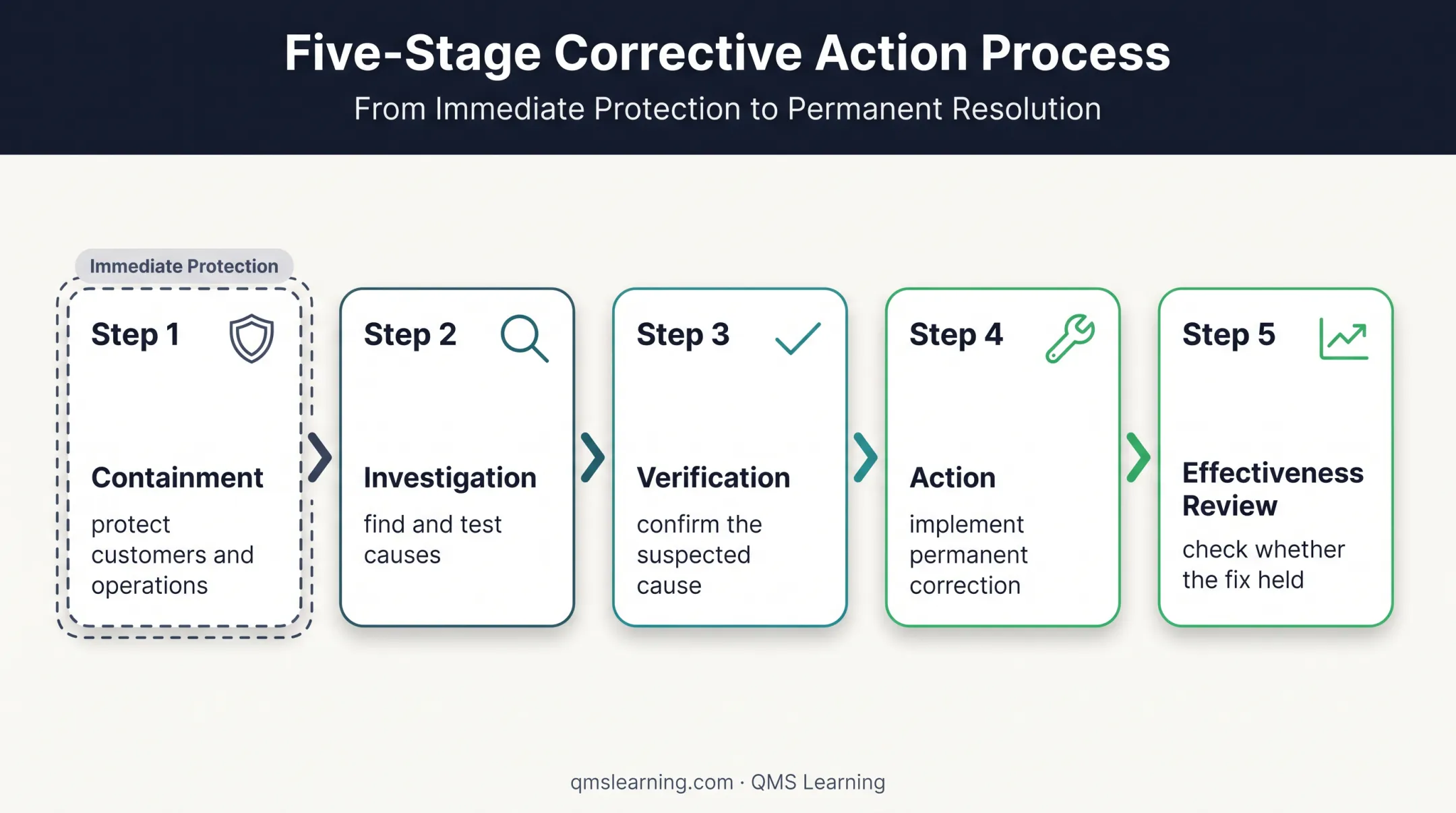

Effective RCA moves through five stages: containment, investigation, verification, action, and effectiveness review. Containment protects customers and operations right now. It is not a substitute for permanent corrective action. That distinction trips up more investigations than any single tool choice.
Common mistakes to watch for throughout:
- Vague problem statements that can't be tested
- Jumping to a conclusion before evidence supports it
- Blame-oriented discussion instead of systems-focused discussion
- Stopping at "operator error"
- Confusing correlation with causation
- Closing the file before confirming the problem actually stayed resolved
Define the Problem and Contain the Immediate Risk
Write a specific problem statement: what happened, where, when, which product or process, the expected condition, and the measurable gap between them.
Separate containment from investigation. Document affected lots, equipment, records, or work in progress. Then scope the issue using defect type, frequency, severity, process step, and recurrence history — this tells you how big the problem actually is before you start chasing causes.
Gather and Organize Evidence
Collect objective evidence: production records, nonconformance reports, maintenance history, process parameters, training records, interviews, and direct observations.
Build a factual timeline of what changed — process parameters, personnel, materials, equipment condition, or a control that failed or was missing. Then separate verified facts from assumptions and opinions. This step is where most weak investigations quietly fail; teams build conclusions on incomplete records without realizing it.
Analyze Possible Causes
Widen the search first with fishbone analysis or process mapping. Then narrow with 5 Whys, change analysis, or Pareto data on specific branches.
Involve a small cross-functional team with the authority to implement changes. For each candidate cause, ask: would removing this condition have prevented the problem, and does the timeline actually support a causal link?
Verify the Root Cause
A suspected cause is a hypothesis until it's tested. Confirm it through repeat observation, a controlled trial, trend comparison, or demonstrating that the failure mode disappears when the condition is corrected. SAE's AS13000A standard, widely used across aerospace supply chains, requires the verified cause to explain every fact compiled during problem definition — not just the most convenient one.
Distinguish the root cause from contributing factors and escape points — the reason the problem wasn't caught sooner is often a second, separate finding. Stop the analysis at a cause that's specific, actionable, and within the organization's control.
Develop and Implement Corrective Action
Turn the verified cause into a change: a process control, design update, supplier requirement, training system fix, or inspection method change. Assign an owner, a due date, and required resources for every action.
Engineering and process controls hold up better than retraining alone. Update the affected procedures, FMEA records, and inspection plans so the fix becomes part of the operating system, not a one-time memo.
Review Effectiveness and Close the Loop
Define a measure tied directly to the original problem — recurrence rate, escape rate, downtime, or complaint volume. Review results after an appropriate operating period, and be honest about whether the action worked, partly worked, or introduced a new risk.
A few good parts right after an adjustment don't prove a lasting fix. Preserve the completed RCA — evidence, approvals, and follow-up — for future investigations and audits.
Root Cause Analysis Example: A Manufacturing Nonconformity Walkthrough
Here's how this plays out on a real production floor. Incoming inspection flags an out-of-tolerance bore on three lots, all from the same supplier.
- Contain: Suspect stock is quarantined per procedure. Affected lots, dates, and the applicable requirement are recorded. This is correction, not the fix.
- Map causes: A fishbone diagram organizes possibilities across machine, method, material, measurement, people, and environment. A timeline shows a maintenance interval changed shortly before the defect appeared.
- Apply 5 Whys: The team hypothesizes that the maintenance change allowed process drift. Each "why" is checked against tool-condition history, machine settings, material lots, and measurement-system checks, not accepted on assumption.
- Verify: The cause stays unconfirmed until evidence distinguishes it from other explanations. A controlled trial and comparison against conforming production either support or rule out the hypothesis.
- Correct both occurrence and escape: Actions address why the defect happened and why it wasn't caught sooner, with an owner, due date, and defined effectiveness criterion (a specific measure, sampling period, and review condition).
- Close the loop: The completed record contains the problem statement, evidence, analysis method, verified cause, actions, approvals, and follow-up results. The file is auditable, not a memory.
This mirrors how QMS Learning's Root Cause Analysis & CAPA course structures practice scenarios. In one case, a supplier re-qualification gap diagnosed through 5 Whys and paired with a CAPA update to the Supplier Re-Qualification Procedure produced a 4-page AS9100D §8.4.3-compliant report accepted on first review.
How QMS Learning Can Help
Most RCA training teaches the tools. Fewer teams get practice applying judgment: knowing which tool fits which problem, and building the evidence trail an auditor will actually accept.

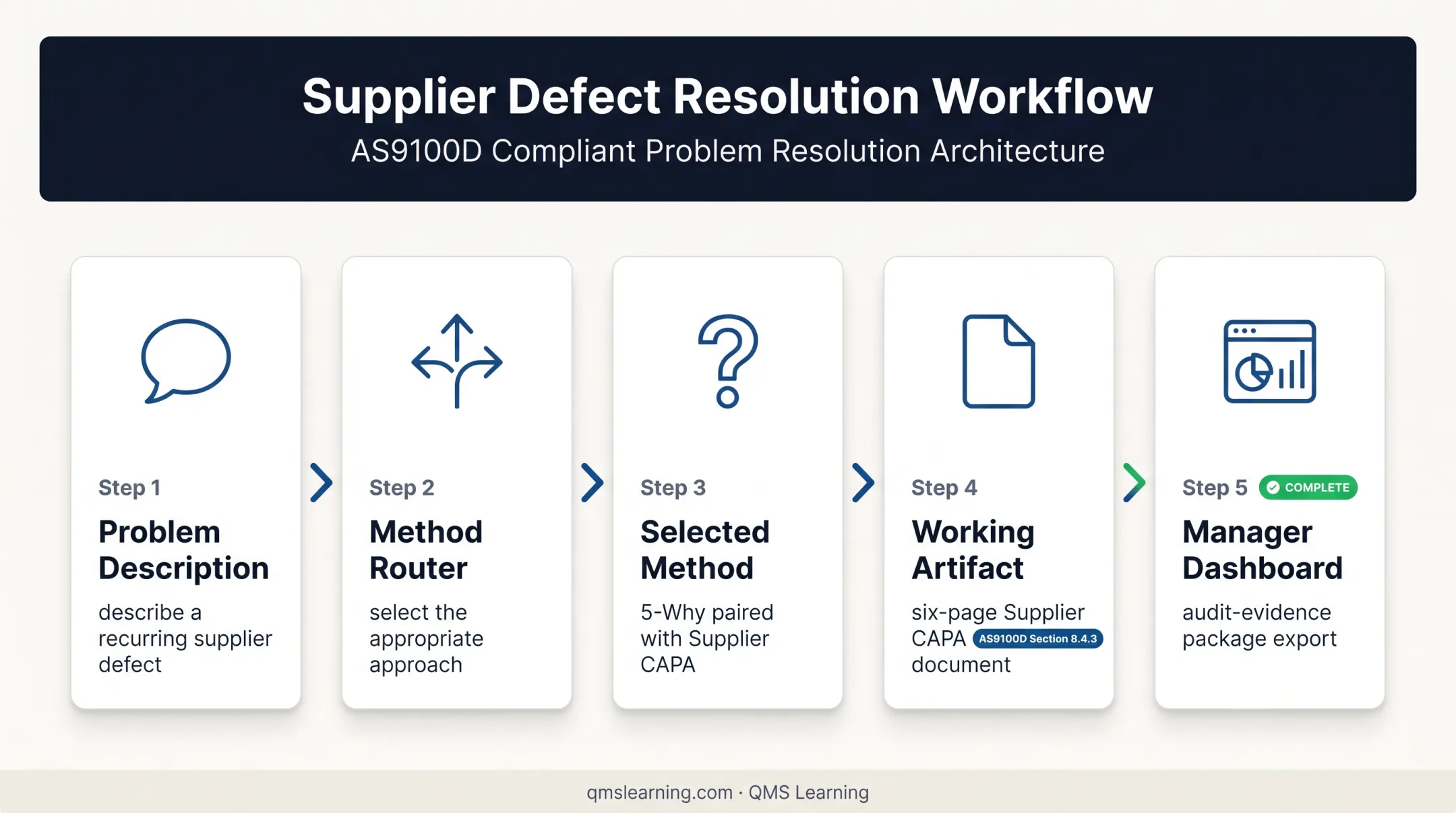

QMS Learning's AI Workbench addresses that gap directly. Describe a problem, such as a defect recurring across three jobs from one supplier in a single quarter, and the Method Router selects the appropriate approach.
In that scenario, it chose 5-Why paired with Supplier CAPA, not FMEA, because FMEA is built for anticipating failures, not closing one that's already happened. The result was a working artifact: a six-page Supplier CAPA document mapped to AS9100D §8.4.3.
The platform's Root Cause Analysis & CAPA (AS13000) course, priced at $295 per seat, trains quality engineers, CAPA owners, investigators, and supervisors to:
- Investigate causes and organize an 8D
- Run AI-assisted 5-Why sessions that get challenged, not rubber-stamped
- Build a cause-evidence record and CAPA priority queue
- Verify corrective-action effectiveness before closing the file
Every scenario, time-stamped activity, and generated document flows into a Manager Dashboard export: an audit-evidence package that quality managers can hand over without rebuilding it from scratch the night before a registrar visit.
The practitioner foundation behind this comes from Will Trikha, founder of QMS Learning, who spent 20 years in quality and operations roles, writing more than 1,000 audit findings and closing twice that number as a quality manager. That hands-on floor experience shapes how the courses and Workbench scenarios are built around real investigations, not textbook cases.
If your team is still relying on one senior engineer to run every root cause investigation, a qualified-team pilot is a low-friction way to see whether the Method Router and AI Workbench hold up against your actual nonconformities.
Conclusion
Effective RCA connects a clearly defined problem to a verified cause, a proportionate corrective action, and a measurable effectiveness check. Skip any one of those links and the investigation is cosmetic: a completed form, not a fixed process.
Tools like 5 Whys, fishbone diagrams, Pareto charts, and change or barrier analysis are only as good as the evidence behind them. Used deliberately, in the right sequence, they turn a recurring problem into a resolved one.
RCA shouldn't be a one-time reaction to an audit finding or a defect escape. It should be a repeatable practice your team runs the same disciplined way every time, because the alternative is explaining the same root cause again next quarter.
Frequently Asked Questions
What is the purpose of root cause analysis?
RCA identifies and addresses the underlying causes of a problem so it's less likely to recur. It differs from containment, which protects customers temporarily but doesn't fix the system that allowed the problem.
What are the 5 core principles of root cause analysis?
- Evidence-based investigation
- Focus on systems rather than blame
- Consideration of multiple causes
- Involvement of relevant process owners
- Verification that the corrective action actually worked
What are the 5 Whys of root cause analysis?
5 Whys is an iterative questioning technique that drills past symptoms toward a controllable cause. Five is a guideline, not a fixed rule: some chains need fewer questions, others need more, and every answer needs evidence behind it.
What are examples of root cause analysis?
Common examples include recurring dimensional defects, unplanned equipment downtime, supplier nonconformities, inspection escapes, safety incidents, and CAPAs that closed without preventing recurrence.
Which root cause analysis tool should you use?
Match the tool to the problem: 5 Whys for a direct cause chain, fishbone for broad exploration, Pareto for prioritizing where to look first, and change or barrier analysis for complex events involving failed controls.
How do you know if you found the true root cause?
The cause must be supported by evidence, explain the full set of facts around the event, and be something the organization can control. Confirmation comes from effectiveness monitoring after the fix, not from the investigation alone.
