The gap usually isn't effort. It's structure. Vague problem statements, "operator error" conclusions with no evidence behind them, and effectiveness checks that only confirm a form got signed all produce reports that pass internal review but fail an audit, or worse, fail to fix anything at all.
FDA's FY2017 report attributed roughly a third of Quality System observations to the CAPA subsystem alone, historically its second-largest finding category. That's not a current failure rate, but it shows how often CAPA records don't hold up under scrutiny.
This article covers when CAPA is the right tool, how to structure the investigation, how to write an action plan that survives an audit, and how to pick effectiveness evidence that actually proves a problem is gone.
Key Takeaways
- A strong CAPA traces evidence through root cause, action, ownership, and verified effectiveness, not just task completion
- Corrective action fixes causes; containment, correction, and retraining are different tools, not interchangeable substitutes
- Root cause claims need evidence and cross-functional validation; "operator error" alone won't survive an audit
- Effectiveness checks measure whether the problem stopped recurring, not whether an action was finished
- Every CAPA stays linked to related QMS records: nonconformances, audits, complaints, risk reviews, and training
How to Write a CAPA Plan That Documents Root Cause
CAPA Report vs. CAPA Request vs. CAPA Plan
These terms get used interchangeably, but they're not the same document.
- CAPA request or form: the intake record, including who raised the issue, what triggered it, and initial priority
- CAPA plan: the working document where investigation, root cause, and actions get built out
- CAPA report: the final record showing the reasoning behind every decision, not just the conclusions
An auditor doesn't just want to see what you decided. They want to see why. If the root cause statement doesn't show the data that ruled out other explanations, the report reads like a guess with a signature attached.
Define the Problem, Then Contain It
Start with facts, not interpretation. A solid problem statement answers:
- What happened, specifically: not "a part failed," but which dimension, spec, or function failed
- Where and when it occurred, including shift, line, or supplier
- Which product, lot, or work order was affected
- How it was detected (incoming inspection, customer complaint, internal audit)
- The known or potential impact on product, schedule, or compliance
One example worth borrowing: an incoming inspection flagged an out-of-tolerance bore on three lots from a single supplier. The record that held up under review included the applicable spec, actual measurements, affected lot numbers, inspection dates, and a check of the measurement system itself, confirming the gauges weren't the problem before anyone blamed the supplier.
Containment is not corrective action. Quarantining the three lots, sorting inventory, or adding a 100% inspection step protects the customer today. It says nothing about why the bore was out of tolerance in the first place. Document containment separately, with affected lots and temporary controls clearly labeled, so reviewers can tell what's temporary from what's permanent.

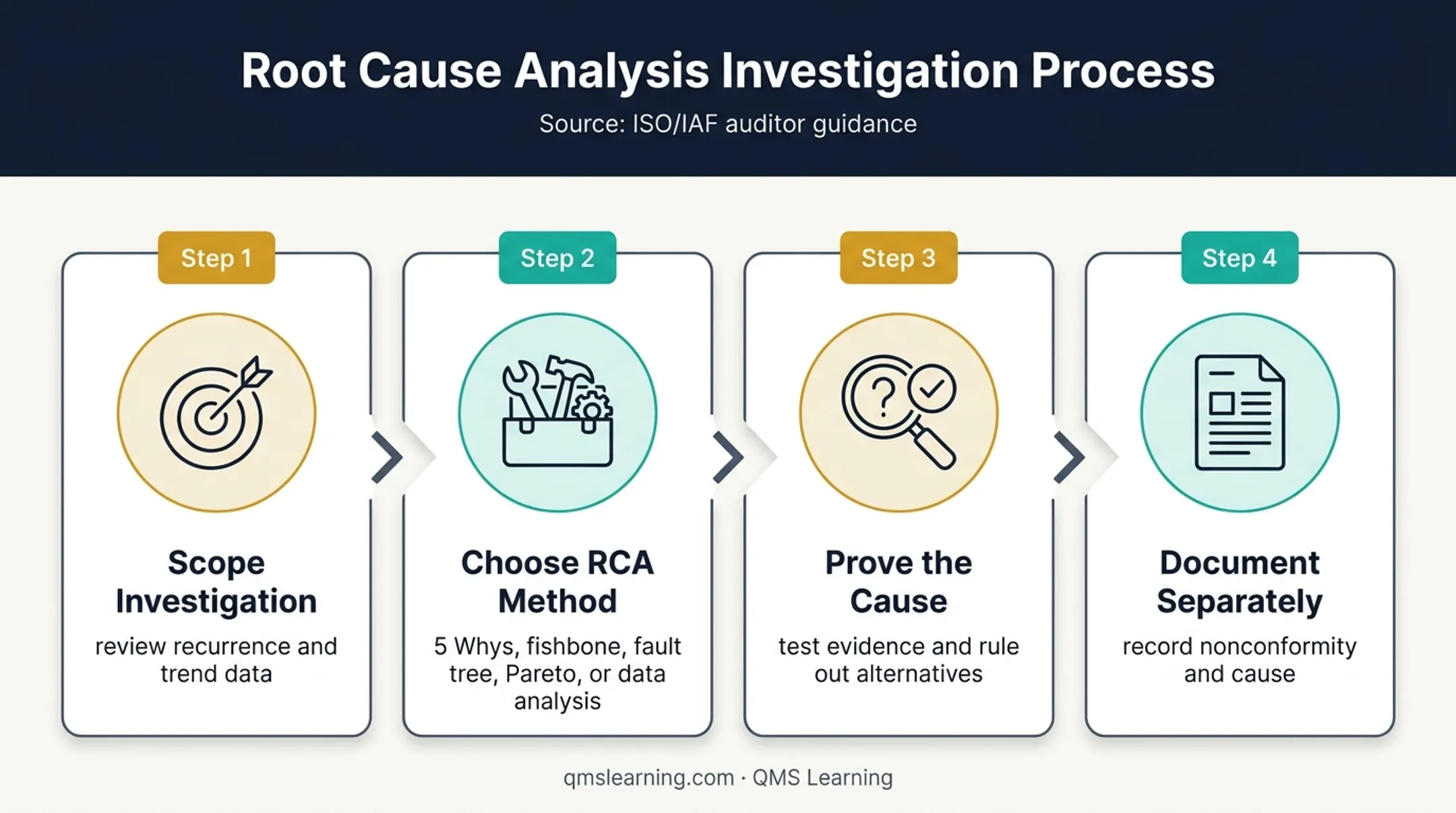

Scope the Investigation, Then Prove the Cause
Before picking a root cause tool, decide what you're actually investigating. Is this isolated to one lot, or does it show up across shifts, sites, or suppliers? Pull recurrence and trend data first, since the scope decision changes which method fits:
- 5 Whys for a relatively linear cause-and-effect chain
- Fishbone (Ishikawa) when multiple potential categories need parallel exploration
- Fault tree, Pareto, or data analysis when causes interact or several trends need prioritizing
Whichever method you use, write the root cause as something testable, not asserted. Note what evidence supports it, what alternative causes you ruled out, and why the selected cause explains the failure pattern you actually observed.
Take "inspection missed a defect." The lazy conclusion is operator error. A real investigation checks:
- Whether the defect was specified in inspection criteria
- Whether the gauge could detect it
- Training records and inspector workload at the time
- Procedure design and whether management controls caught the sampling gap
According to ISO/IAF auditor guidance, correction and corrective action serve different purposes. Reviewers expect both the detected nonconformity and its cause documented separately before closure.
How to Define Corrective Actions and Verify Effectiveness
Turn Root Cause Into a Specific Action
Once the cause is verified, the action has to change whatever allowed it: a process step, a control, a spec, a supplier relationship, a document, or a system. "Retrain the operator" only qualifies if training was the verified gap.
For every action item, document:
- The deliverable: the specific change being made
- Owner and supporting functions: who's accountable, who else is involved
- Due date and resources needed
- Implementation evidence: what proves it happened
- Dependencies: change control or validation required first
Not every follow-up belongs under "corrective action." A potential failure mode that hasn't occurred yet is preventive action and probably belongs in an FMEA or risk register update. A procedure change already planned for other reasons is change control. Keep these linked but labeled correctly; mislabeling is a common finding in itself.

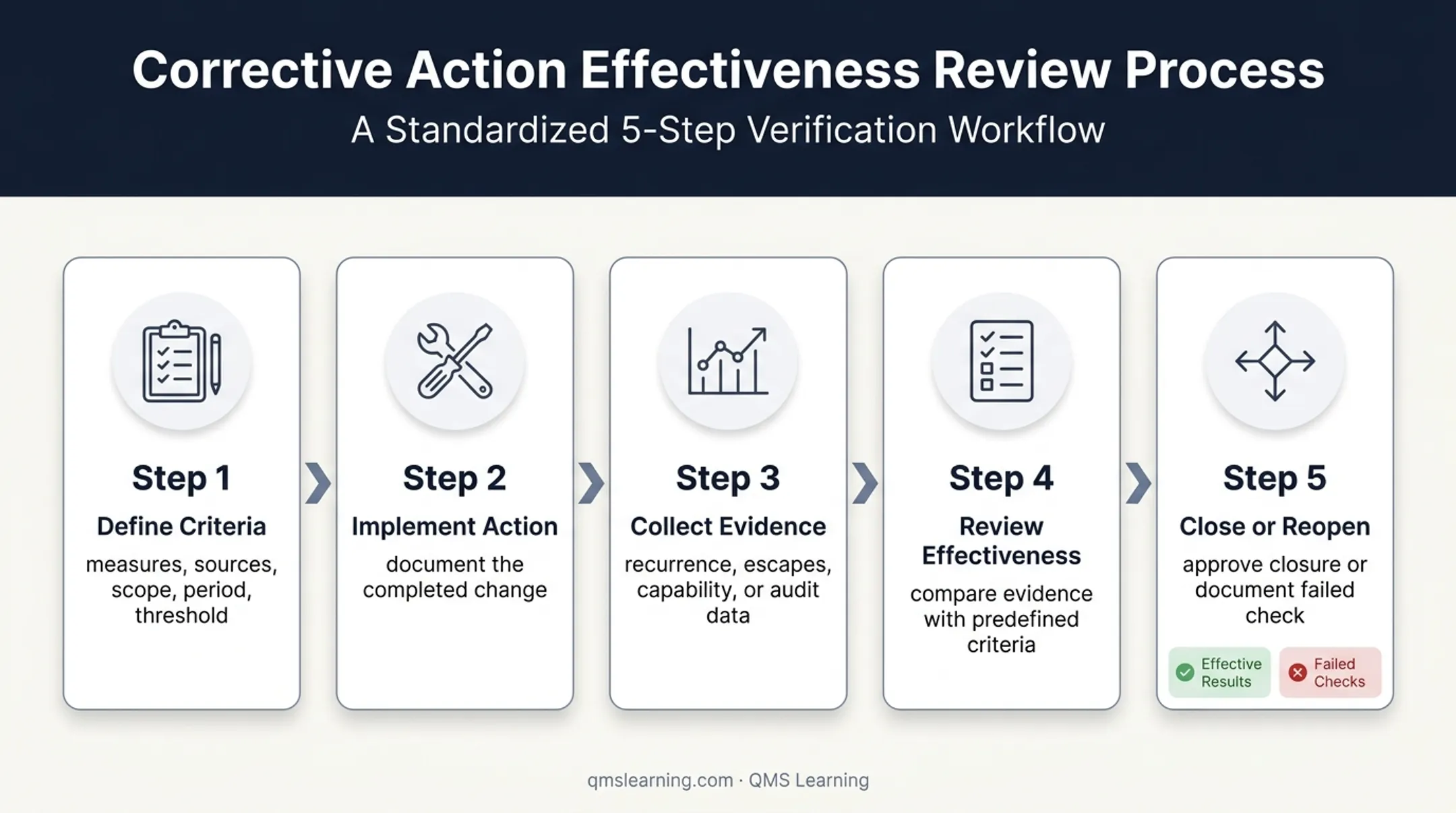

Define the Effectiveness Check Before You Implement
This is where most CAPAs fail. Write the effectiveness criteria before the fix goes live:
- What will be measured: defect rate, escape rate, audit result, or complaint trend
- Data source: inspection records, SPC data, audit findings, or customer feedback
- Sample or review scope: how much data, from where
- Evaluation period: long enough to catch the real pattern, not just the next good batch
- Acceptance criteria: the specific threshold that counts as "effective"
- Reviewer and trigger date: who signs off, and when
A few good parts right after an adjustment prove the fix ran once. They don't prove the process is controlled. Use recurrence trends, escape data, process capability, or a follow-up audit: evidence that tests the outcome, not just the activity.
Implementation Evidence Isn't Effectiveness Evidence
A signed training record or a revised procedure proves the action was completed. It doesn't prove the action worked. Keep these two forms of evidence separate, with separate dates and separate sign-offs.
Close the CAPA only when:
- Actions are implemented and documented
- Effectiveness evidence has been reviewed against predefined criteria
- Related records (procedures, FMEA, training, supplier files) are updated
- An authorized reviewer approves the conclusion
If the check fails, don't extend the due date. Reopen the CAPA, document what the original investigation missed, and return to the evidence. A reopened CAPA with a documented reason holds up far better in an audit than a closed one sitting next to a recurring defect.

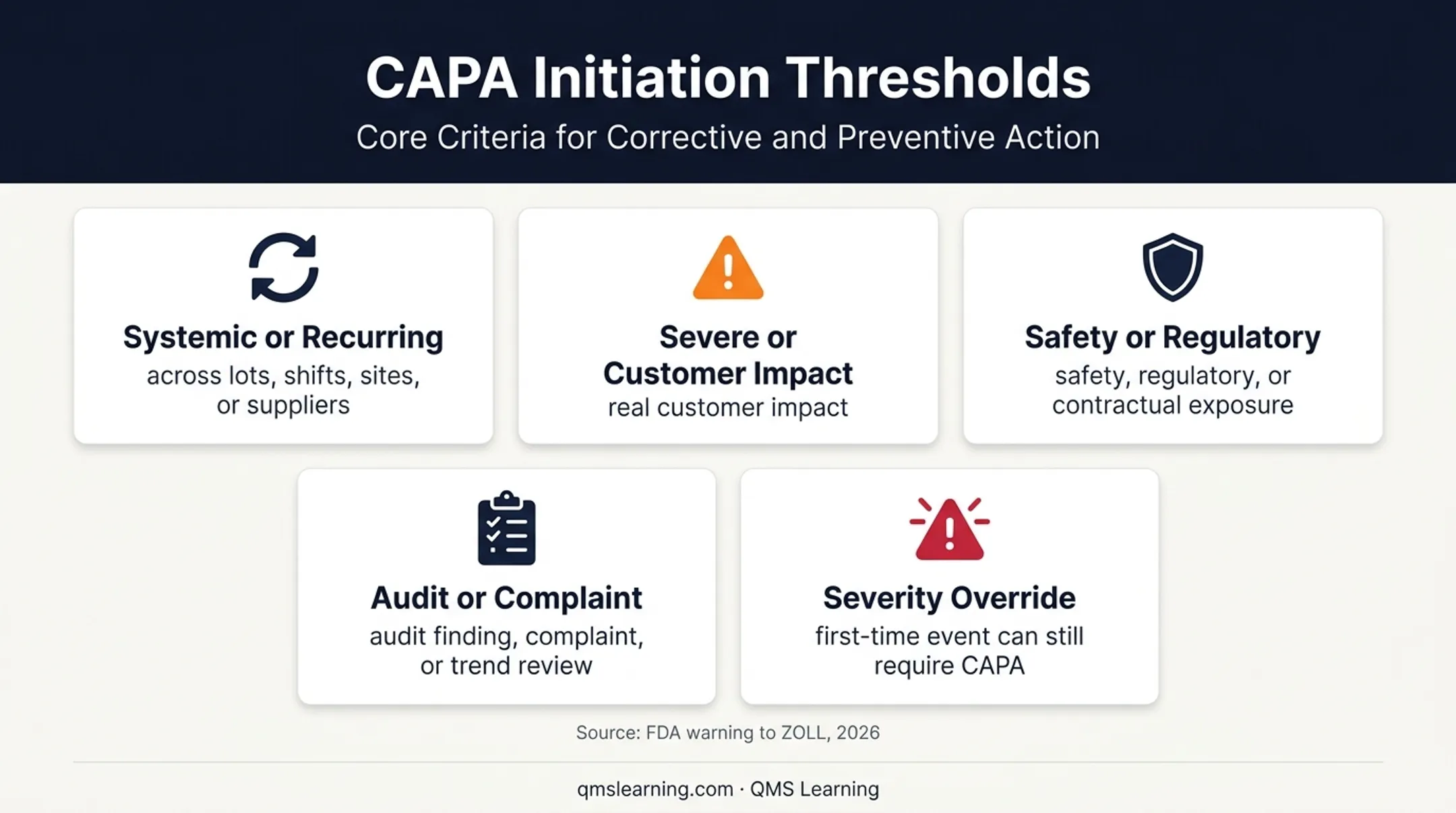

When to Open a CAPA and What to Prepare
Not every nonconformance needs a full CAPA. Isolated, low-risk issues can often be handled through a correction or nonconformance record, per your own procedure. CAPA is generally appropriate when an issue is:
- Systemic or recurring across lots, shifts, sites, or suppliers
- Severe or has real customer impact
- Tied to safety, regulatory, or contractual exposure
- Surfacing from an audit finding, a complaint, or a trend review
Other common triggers include supplier escapes, process capability drift, and safety events. Check your industry's specific requirements before finalizing what counts as a trigger.
Severity can override frequency. A first-time event isn't automatically low priority. In a 2026 letter, FDA's warning to ZOLL challenged the company's decision to reject a CAPA as a one-off, despite potential arcing and patient burns.
Before the Investigation Starts
Gather this before opening the report:
- The originating record and objective evidence
- Risk or impact assessment
- Relevant specs, procedures, and process history
- Containment decisions already made
Identify a process owner and build a cross-functional team when the issue spans quality, engineering, production, supply chain, or regulatory. Assign a unique CAPA identifier, priority, target dates, and approval path, then link it to related QMS records before investigation work begins.
One example: a defect on three separate jobs from the same supplier in one quarter was treated as systemic. That triggered a 5-Why and a linked Supplier CAPA instead of three isolated corrections.
Key Parameters That Affect CAPA Quality
CAPA quality hinges on controlling a handful of variables, not just picking the right RCA tool.
| Parameter | Why it matters | What strengthens it |
|---|---|---|
| Problem scope & evidence quality | Thin or subjective evidence pushes teams toward a convenient cause instead of the real one | Records, samples, interviews, observations, and trend data behind the problem statement |
| Risk and proportionality | Severity, likelihood, detectability, and regulatory exposure should set investigation depth | Documented rationale tied to an approved risk matrix |
| Action measurability | "Improve training" or "monitor the process" can't be implemented consistently or verified | Each action states the changed condition, owner, due date, and link to the verified cause |
| Effectiveness timing | Checks run too early, or based only on completion records, miss recurrence | Justified review period, adequate data volume, and an independent reviewer |
| Documentation control | Outdated procedures, missing approvals, or altered records weaken credibility fast | Revision history, time-stamped activity, and controlled attachments |
Of these, evidence quality tends to cause the most downstream damage. Weak evidence doesn't just produce a bad root cause. It produces an action plan built on the wrong assumption, and an effectiveness check that was never going to catch the real problem.

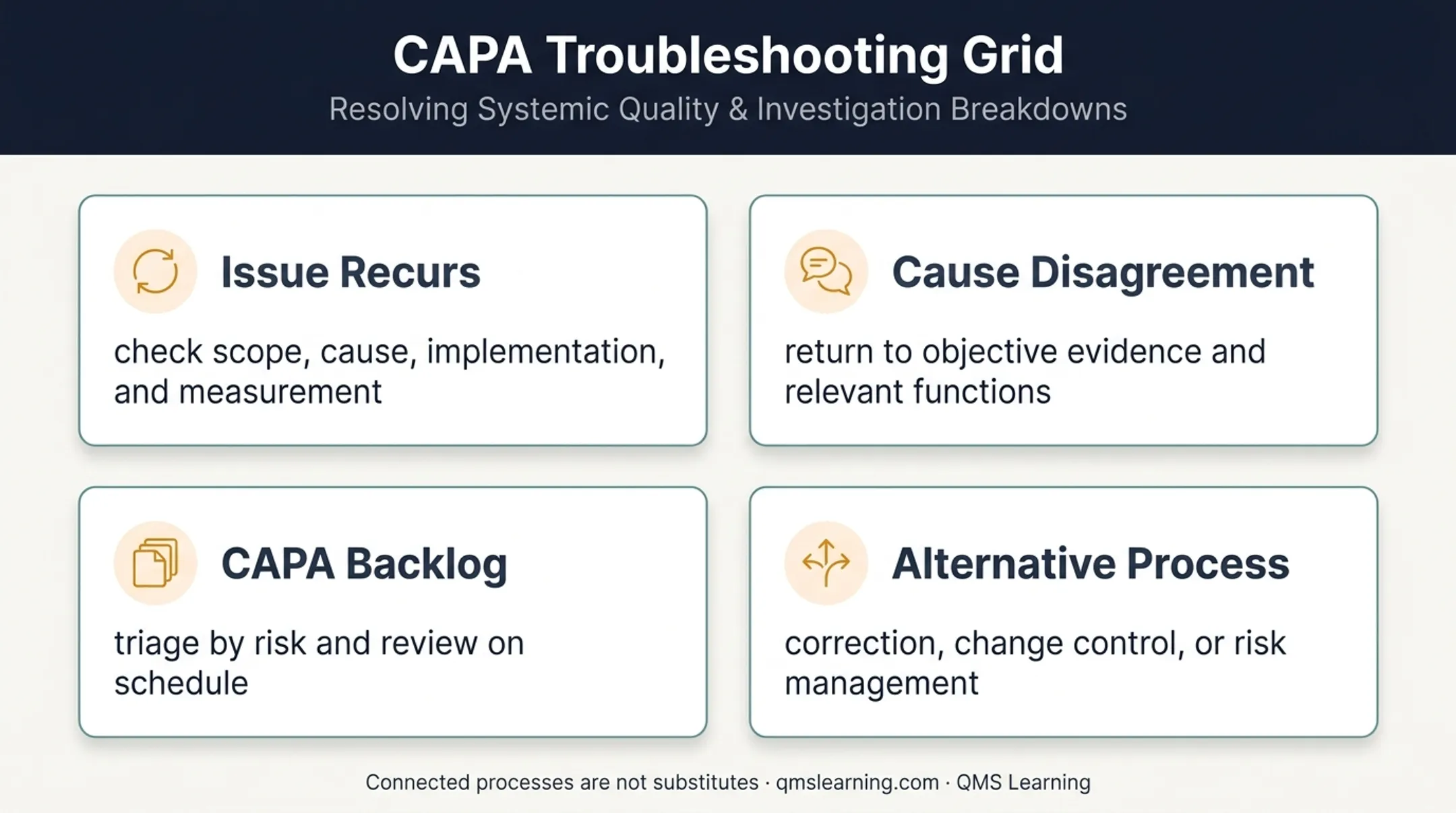

Common Mistakes, Troubleshooting, and Alternatives
Most CAPA failures trace back to a handful of repeat offenders:
- Vague problem descriptions that don't specify what, where, or how much
- "Human error" or "lack of attention" conclusions with no supporting evidence
- Action items without named owners or real due dates
- Closure based only on training completion or a document revision
If the issue recurs after closure, check whether:
- The scope was too narrow
- The selected cause was only a symptom
- The action wasn't implemented as designed
- The effectiveness measure couldn't detect the problem
Document the reopened CAPA and what changed in the re-investigation.
If the team can't agree on root cause, return to objective evidence. Separate facts from hypotheses, bring in the process owner and relevant functions, and switch RCA methods if the causal chain turns out more complex than expected.
If the CAPA backlog keeps growing, that's usually a triage problem, not a writing problem. Set documented criteria for when CAPA is warranted, prioritize by risk, and review the backlog on a schedule instead of closing records early to clear the queue.
CAPA isn't the only tool available. Match the process to the situation:
- Correction or nonconformance record for an isolated issue
- Change control for a planned process change
- Risk management for a potential failure that hasn't happened yet
These processes connect; they're not substitutes for each other.
Teams that struggle with method selection or evidence gathering sometimes lean on structured support here. QMS Learning's AI Workbench helps route a problem to the right method and drafts the supporting documentation, but the analysis and final record still need a qualified reviewer's sign-off.
Conclusion
A strong CAPA report tells a complete story: what happened, why it happened, what changed, who owned it, and how you confirmed the change actually worked. Skip any one of those links and the chain breaks, usually right when an auditor or a recurring defect tests it.
The strongest plans control scope early, keep containment separate from corrective action, tie every action to a verified cause, and define effectiveness criteria before implementation starts, not after.
QMS Learning builds this capability directly into its Root Cause Analysis & CAPA training, which walks teams through 8D, 5-Why, fishbone, and fault tree methods with AI-assisted investigation support and coach access for 90 days after completion. The goal isn't a binder of templates. It's a team that can defend its own root cause in front of an auditor without waiting on a consultant.
Frequently Asked Questions
What is a CAPA report?
A CAPA report is the controlled record of a quality issue: the investigation, root cause, corrective or preventive actions, implementation evidence, effectiveness verification, and final approval. It's meant to show reasoning, not just conclusions.
What should be included in a CAPA report?
At minimum: the problem statement, source and risk, containment, the RCA method and evidence used, the verified root cause, the action plan with owners and dates, implementation records, effectiveness results, and approval sign-off.
How do you document root cause in a CAPA report?
Write the root cause as a specific, evidence-backed statement, not an assumption. Include the analysis method used, the data reviewed, the alternative causes ruled out, and why the selected cause explains the actual failure pattern.
How do you verify the effectiveness of a CAPA?
Define measures, acceptance criteria, data sources, and a review period before implementation. Afterward, use recurrence trends, audit results, or capability data, and document what happens if the criteria aren't met.
When should a CAPA be closed?
Close only after actions are implemented, effectiveness evidence has been reviewed against predefined criteria, related QMS records are updated, and an authorized reviewer approves the conclusion.
